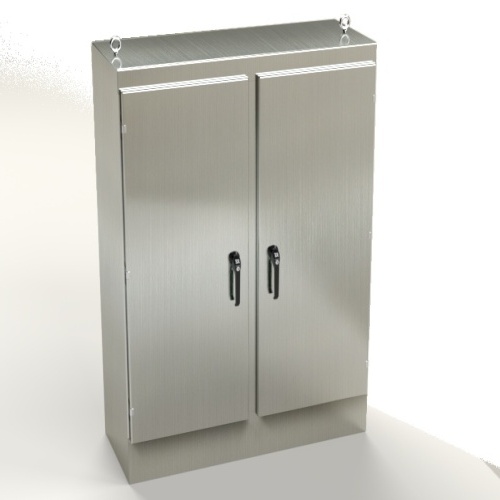

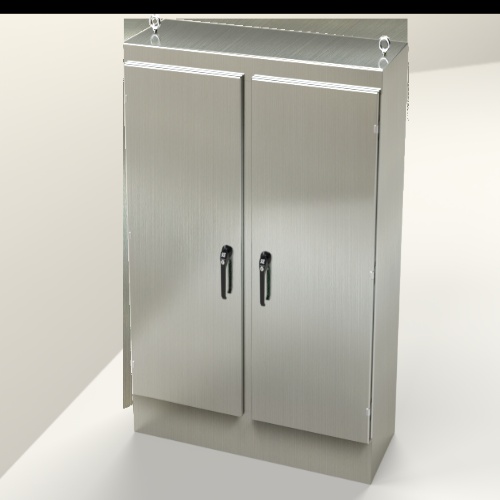

Saginaw SCE-60EL4818SS6FSD - S.S. EL FSD Enclosure
Normally In Stock
Code: 555747
Saginaw SCE-60EL4818SS6FSD - S.S. EL FSD Enclosure - Type 316 Stainless Steel with #4 Brushed finish. Optional sub-panels powder coated white. - NEMA 3R, 12, 4, 4X - 60" x 48" x 18" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$14470.97
Sale Price
$12059.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Saginaw SCE-60EL4818SS6FSD - Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Specifications
Features
Application: Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
0.104 In. Stainless Steel Type 316L
Removable and inchangeable doors
Concealed hinges
Seams continuously welded and ground smooth
Strong rigid construction with stiffeners welded on backs of single access boxes
Lifting eyes for easy handling
Black zinc die cast keylocking/padlocking handle
3-point latching mechanism
Latch rods have ramp shoes for easier door closing
Flange trough collar around all sides of door opening
Removable center post
Removable print pocket
Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles
Pour in place oil & water resistant gasket
Ground stud on door
Provisions for light kit.
