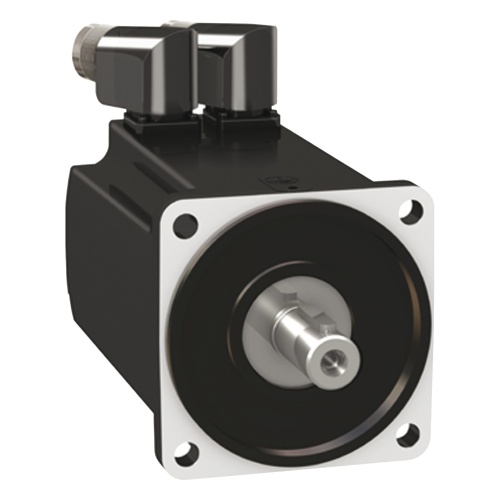

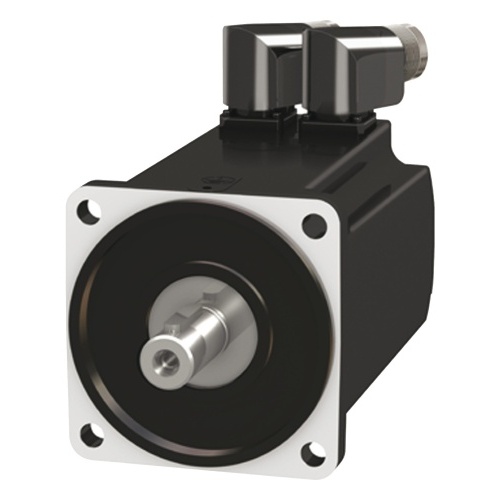

Schneider Electric MH31003P01A2200 Servo Motor - 115-480 Volt, 26.71 Amp, 4.4 HP, 6000 RPM, 3Ph
Normally In Stock
Code: 495394
Schneider Electric MH31003P01A2200 servo motor MH3 100 8Nm, no key, single, no brake, IP65/IP67, 4kRPM
Condition: New
Usually ships Same Day or Next Day$3664.39
Sale Price
$3053.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric MH31003P01A2200 is a three-phase motor with a maximum speed of 6000 rpm and a maximum radial force of 1050 N. Its length is 7.58 in (192.6 mm), with a mounting hole circle diameter of 4.53 in (115 mm) and a shaft diameter of 0.75 in (19 mm). It operates at a voltage range of 115-480 V and has a continuous stall torque of 79.66 lbf.in (9 N.m). It is suitable for use with PacDrive 3 systems and has an IP65 degree of protection.
Specifications
Manufacturer
Schneider Electric
Motor Voltage Phases
1 Phase
Features
The ambient operating temperature is - 20...+ 40 °C (- 4...+ 104 °F) without derating, in accordance with IEC 60721-3-3, category 3K3, and up to 55 °C (131 °F) with derating of 1% of the nominal output power per additional °C above 40 °C (104 °F).
The maximum operating altitude is 1,000 m (3,280 ft.) without derating, 2,000 m (6,561 ft.) with k = 0.86, and 3,000 m (9,842 ft.) with k = 0.8 (1).
The relative humidity that the servo motor can withstand is in line with IEC 60721- 3-3, categories 3K3, 3Z12, and 3Z2.
The windings are insulation class F (maximum temperature for windings 155 °C (311 °F) in accordance with IEC 60034-1.
All mounting positions are permitted (horizontal mounting (IMB5) or vertical mounting (IMV1 with shaft end at the top and IMV3 with shaft end at the bottom) in accordance with IEC 60034-7
