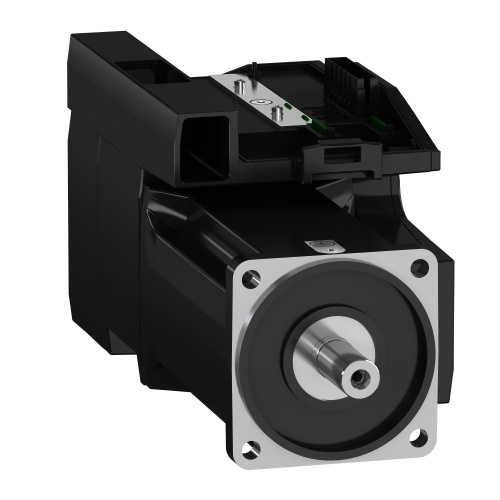

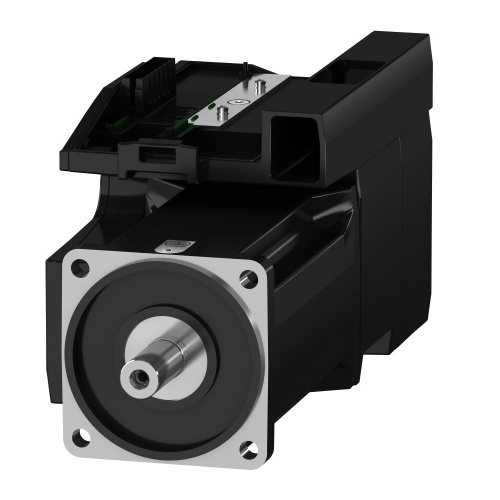

Schneider Electric BMI1002T27F Servo Motor - 115-230 Volt, 30 Amp, 6000 RPM, 1Ph
Normally In Stock
Code: 495270
Schneider Electric BMI1002T27F servo motor BMI 1-phase - untapped IP65 multiturn - 32768 p/t x 4096 t - brake
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4924.69
Sale Price
$4103.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMI1002T27F Servo Motor with Power Stage is a single-phase motor with a maximum mechanical speed of 6000 rpm and a continuous stall torque of 53.10 lbf.in. It has a length of 11.10 in and a motor flange size of 3.94 in. The motor is compatible with the Lexium 32i range and has an IP65 degree of protection. It operates at a rated supply voltage of 115-230 V and has a maximum output power of 1300 W. The motor features integrated EMC filtering and has a feedback type of absolute multiturn SinCos Hiperface.
Specifications
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor Amperage (Full Load)
30 Amp
Motor RPM's
6000 RPM
Features
The Lexium 32i series is an important component of a control system's safety system because it includes a Safe Torque Off (STO) feature that avoids accidental servo motor activation.
This function complies with IEC/EN 61508 level SIL3 for electrical installations and IEC/EN 61800-1 for power drives.
It simplifies the installation of advanced safety devices while improving maintenance performance by lowering service time. This feature requires a bus connection module with the STO option.
The Lexium 32i range's adaptability allows for excellent integration control system topologies
The Lexium 32i includes logic inputs and outputs that can be adjusted to meet application requirements.
