Phoenix Contact 1172135 Function distribution block PTFIX 10/6X4-SI (5X20)
Normally In Stock
Code: 493319
Phoenix Contact PTFIX 10/6X4-SI (5X20) - Distribution block - 250 Volt, 6.3 Amp - 1172135
Condition: New
Usually Ships Same day or Next Day$11.47
Sale Price
$9.56
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

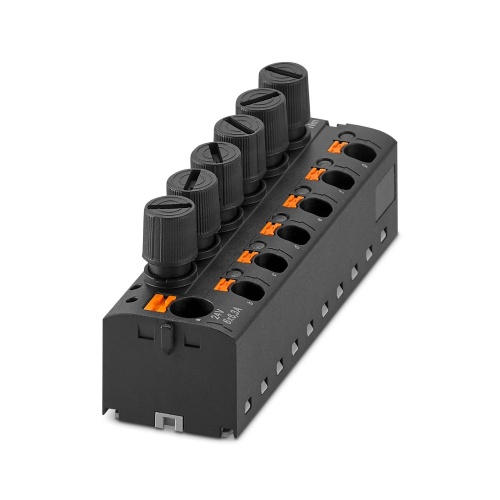

Phoenix Contact 1172135 A function distribution block is rated for a nominal voltage of 250V and has a maximum current capacity of 6.3A. It uses push-in connections for the load contacts, allowing for easy installation and termination. The block features two sets of cross-sections, one for the line contact (0.5mm2-16mm2) and another for the load contact (4mm2), both supported by push-in connections. Additionally, mounting options include snapping onto a DIN rail adapter, direct mounting with a flange, free-hanging, and various colors such as black.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Number of Connections
7
Terminal Block Component Color
Black
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Distributor Terminal Block
Terminal Block Width
87.8 mm
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
