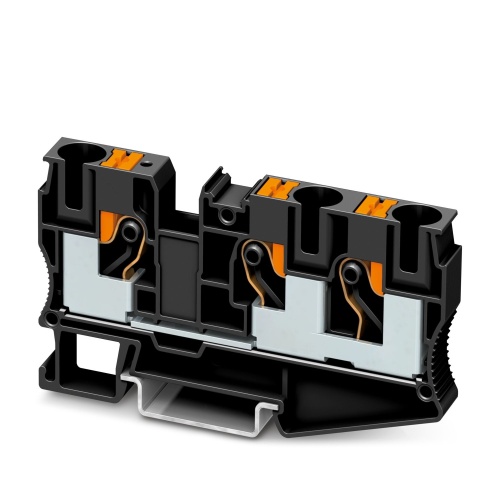

Phoenix Contact 1375410 Feed-through terminal block PT 10-TWIN BK
Normally In Stock
Code: 493169
Phoenix Contact PT 10-TWIN BK - Feed-through terminal block - 1000 Volt, 57 Amp - 1375410
Condition: New
Usually Ships Same day or Next Day$7.85
Sale Price
$6.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1375410 The feed-through terminal block has a nominal voltage of 1000 V and a maximum current capacity of 57 A, with three connection points using a push-in connection method. The rated cross-sectional area is 10 mm2, with a usable range from 0.5 to 16 mm2, and the mounting type options include NS 35/7,5 and NS 35/15, with all configurations featuring a black color scheme.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
10.2 mm
Terminal Block Number of Connections
3
Terminal Block Amperage
57 Amp
Terminal Block Component Color
Black
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
