Code: 493155

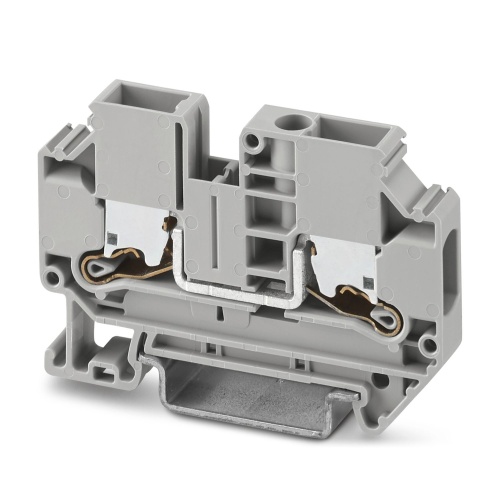

Phoenix Contact 1329493 Feed-through terminal block XTV 6
Normally In Stock
Phoenix Contact XTV 6 - Feed-through terminal block - 1000 Volt, 41 Amp, 1 position - 1329493
Condition: New
Usually Ships Same day or Next Day$4.02
Sale Price
$3.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1329493 A feed-through terminal block is characterized by a nominal voltage of 1000 V and a nominal current capacity of 41 A, accommodating up to two connections and one position. The connection method employed is the Push-X-connection, which features a rated cross-sectional area of 6 mm2 with varying cross-section sizes ranging from 0.5 mm2 to 10 mm2. The terminal block can be mounted using type NS 35/7,5 or NS 35/15, and it exhibits a distinctive gray coloration.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Amperage
41 Amp
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features

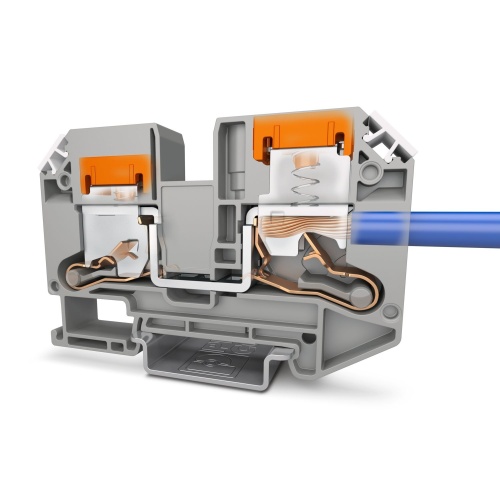

Fast, powerless conductor connection for all conductor types with the pretensioned contact spring
A high level of flexibility when inserting conductors enables conductors with or without ferrules to be connected easily
Clear conductor connection with the lateral connection direction and the clear pusher position
Easy procurement of information – the QR code on the terminal block provides all important information about the product
Terminal blocks with Push-X connection are part of the COMPLETE line system
