Code: 492751

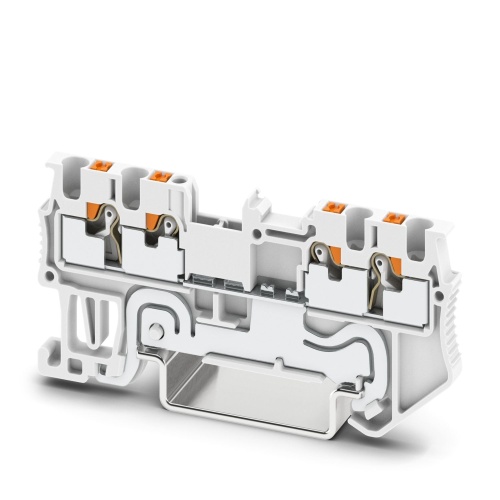

Phoenix Contact 1230476 Feed-through terminal block PT 1,5/S-QUATTRO WH
Normally In Stock
Phoenix Contact PT 1,5/S-QUATTRO WH - Feed-through terminal block - 500 Volt, 17.5 Amp - 1230476
Condition: New
Usually Ships Same day or Next Day$2.33
Sale Price
$1.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1230476 The feed-through terminal block features a nominal voltage of 500 V and a maximum current capacity of 17.5 A with four push-in connections. The rated cross-sectional area for each connection is specified as 1.5 mm², with the lowest level having a smaller cross-section of 0.14 mm² to 1.5 mm². Mounting types include NS 35/7.5 and NS 35/15, while the terminal block itself comes in white color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
White
Terminal Block Amperage
17.5 Amp
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
