Phoenix Contact 1358168 Feed-through terminal block PTV 4 WH
Normally In Stock
Code: 492415
Phoenix Contact PTV 4 WH - Feed-through terminal block - 1000 Volt, 32 Amp - 1358168
Condition: New
Usually Ships Same day or Next Day$2.12
Sale Price
$1.77
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

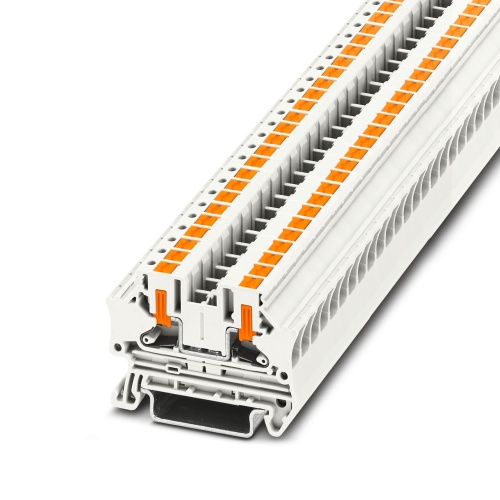

Phoenix Contact 1358168 The feed-through terminal block has a nominal voltage of 1000 V and can handle a nominal current of 32 A with two connections that utilize push-in connection methods. The rated cross section is 4 mm2, and the actual cross sections range from 0.2 mm2 to 6 mm2. This terminal block is mounted using type NS 35/7,5 and NS 35/15 mounting systems, with a white color scheme.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
White
Terminal Block Amperage
32 Amp
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
