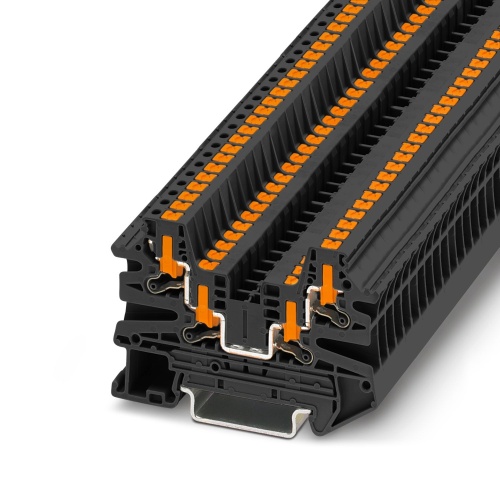

Phoenix Contact 1291510 Feed-through terminal block PTV 2,5-QUATTRO BK
Normally In Stock
Code: 492249
Phoenix Contact PTV 2,5-QUATTRO BK - Feed-through terminal block - 800 Volt, 24 Amp - 1291510
Condition: New
Usually Ships Same day or Next Day$3.08
Sale Price
$2.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1291510 A feed-through terminal block with a nominal voltage of 800V and nominal current of 24A is available, featuring push-in connections to accommodate up to four connections. The rated cross-sectional area for the connections ranges from 0.14mm2 to 4mm2, while the terminal block itself has a mounting type of NS35/7.5 or NS35/15 and a color finish in black.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Manufacturer
Phoenix Contact
Sub Component
Multi-Conductor Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
