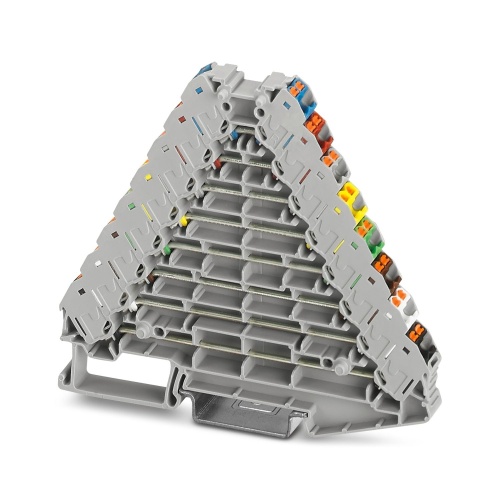

Phoenix Contact 3270230 Marshalling panel PTRV 8 /VDE 0815
Normally In Stock
Code: 492166
Phoenix Contact PTRV 8 /VDE 0815 - Marshalling panel - 250 Volt, 8 Amp, 2 positions - 3270230
Condition: New
Usually Ships Same day or Next Day$32.70
Sale Price
$27.25
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3270230 The marshalling panel specifications include a nominal voltage of 250V and an 8A nominal current, with connections available at multiple levels (1st to 8th) using push-in connectors. The rated cross-sectional areas range from 0.14mm2 to 2.5mm2, while the mounting options are NS35/7,5 and NS35/15. The panel is typically gray in color.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.3 mm
Terminal Block Component Color
Gray
Terminal Block Number of Connections
32
Manufacturer
Phoenix Contact
Terminal Block Amperage
8 Amp
Sub Component
Marshalling Terminal
Features
Tool-free wiring in a confined space thanks to compact size
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.

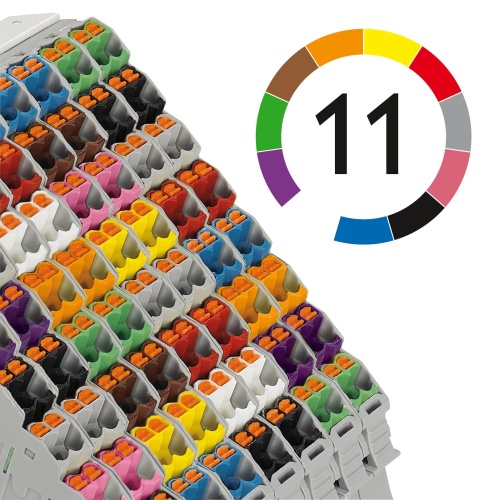

Individual color assignment of cable and terminal point to ensure error-free, safe operation
Color configuration according to VDE 0815

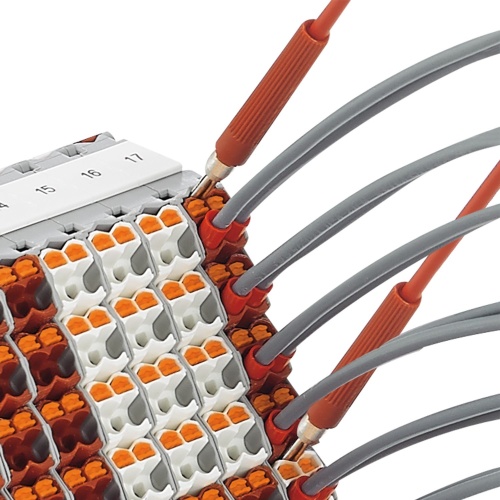

The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes
