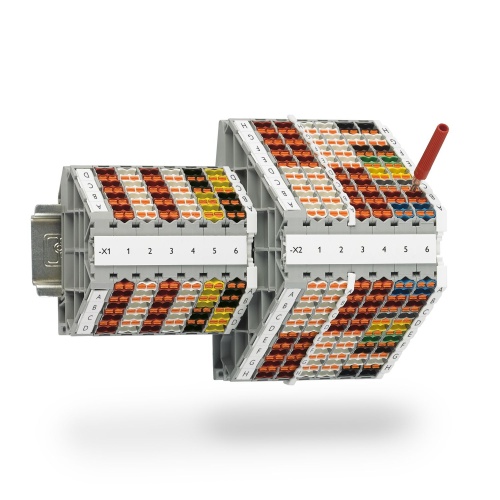

Phoenix Contact 3270118 Marshalling panel PTRV 4 BU/BU
Normally In Stock
Code: 492154
Phoenix Contact PTRV 4 BU/BU - Marshalling panel - 250 Volt, 10 Amp, 2 positions - 3270118
Condition: New
Usually Ships Same day or Next Day$16.14
Sale Price
$13.45
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3270118 The marshalling panel has a nominal voltage of 250V and a maximum current draw of 10A, with push-in connections available at levels 1, 2, 3, and 4. The panel is rated for cross-sections ranging from 0.14mm² to 2.5mm², while its mounting options include NS35/7.5 and NS35/15. The panel's color scheme includes blue for the main components, with blue connection elements also present.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.3 mm
Terminal Block Component Color
Blue
Terminal Block Number of Connections
16
Terminal Block Amperage
10 Amp
Manufacturer
Phoenix Contact
Sub Component
Marshalling Terminal
Features
Blue version for using in intrinsically safe circuits in potentially explosive areas (type of protection Ex i)

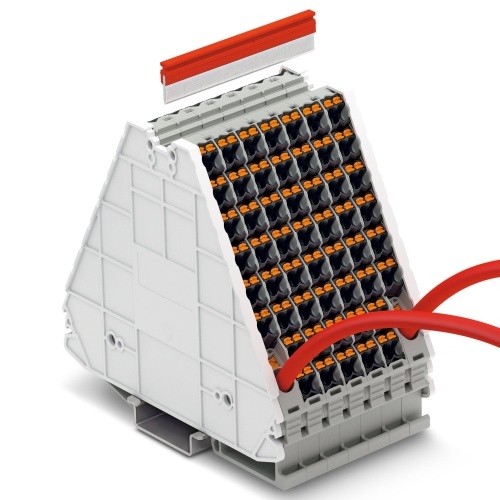

Tool-free wiring in a confined space thanks to compact size

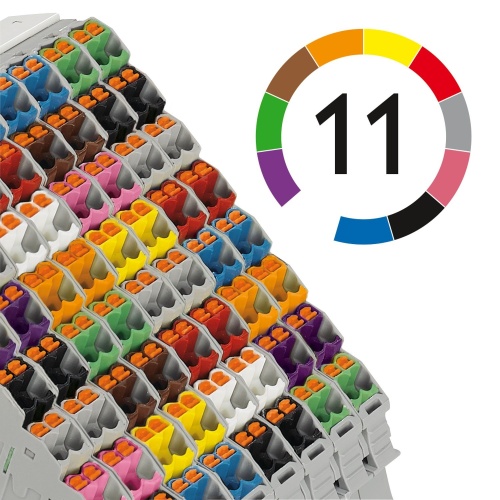

Individual color assignment of cable and terminal point to ensure error-free, safe operation
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.

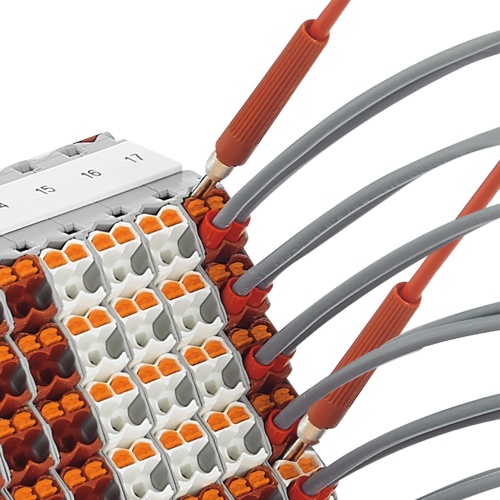

The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes
