Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

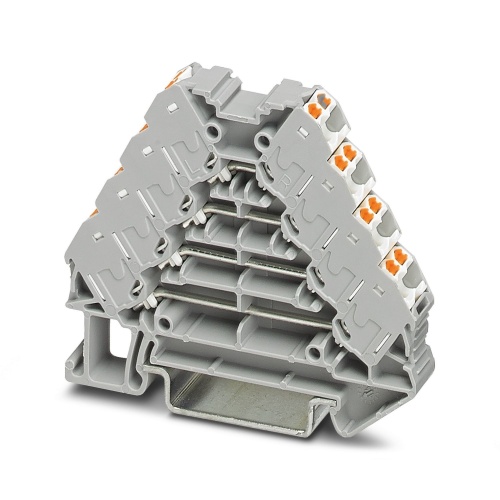

Phoenix Contact 3270115 Marshalling panel PTRV 4 /WH
Normally In Stock
Code: 492152
Phoenix Contact PTRV 4 /WH - Marshalling panel - 250 Volt, 10 Amp, 2 positions - 3270115
Condition: New
Usually Ships Same day or Next Day$16.14
Sale Price
$13.45
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3270115 A marshalling panel has the following specifications: it operates at a nominal voltage of 250 volts and can handle a maximum current of 10 amps. The connection method involves push-in connections for the first, second, third, and fourth levels of the rated cross-section range of 1.5 mm2 to 2.5 mm2. Mounting is possible using components NS 35/7.5 or NS 35/15, with an overall color scheme consisting of a gray base color and white connection elements.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.3 mm
Terminal Block Component Color
Gray
Terminal Block Number of Connections
16
Terminal Block Amperage
10 Amp
Manufacturer
Phoenix Contact
Sub Component
Marshalling Terminal
Features
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.

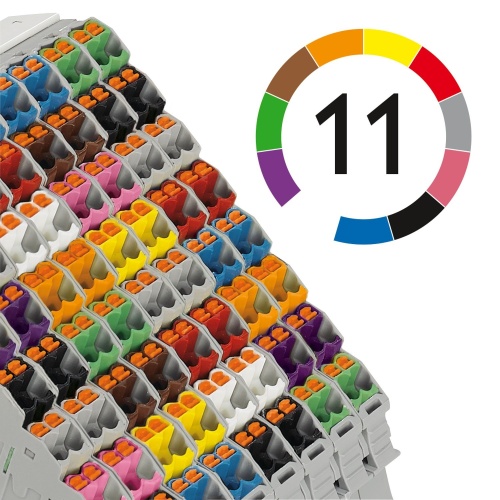

Individual color assignment of cable and terminal point to ensure error-free, safe operation
Tool-free wiring in a confined space thanks to compact size
The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes
