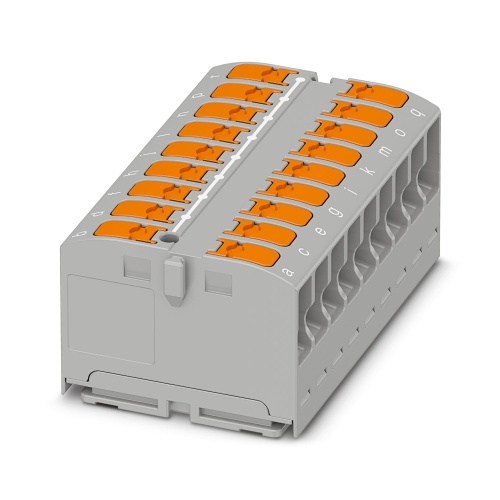

Phoenix Contact 1186867 Distribution block PTVFIX 18X2,5-G GY
Normally In Stock
Code: 492133
Phoenix Contact PTVFIX 18X2,5-G GY - Distribution block - 450 Volt, 24 Amp, 1 position - 1186867
Condition: New
Usually Ships Same day or Next Day$7.31
Sale Price
$6.09
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1186867 A distribution block features a nominal voltage of 450V and a maximum current capacity of 24A with 18 connections available, accommodating one position for connection via push-in method, utilizing cables with cross-sectional areas ranging from 0.14mm² to 4mm², attached using an adhesive mounting system and characterized by a gray coloration.
Specifications
Terminal Block Number of Connections
18
Terminal Block Component Color
Gray
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Terminal Block Width
46.6 mm
Features
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
