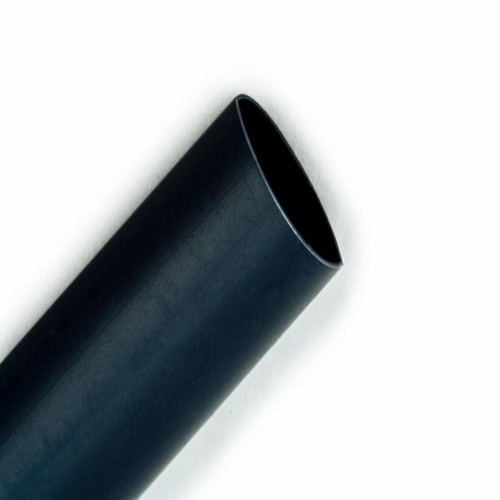

3M 7100034436 - 3M Heat Shrink Thin-Wall Tubing FP-301-1-Black-4`-Bulk: 48 in length,sticks, 96 linear ft/box
Normally In Stock
Code: 475748
3M Heat Shrink Thin-Wall Tubing FP-301-1-Black-4`-Bulk: 48 in length,sticks, 96 linear ft/box - 7100034436
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$149.15
Sale Price
$124.29
SOLD BY THE CASE (1 Case = 24 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts (Catalog Number: FP1.000BK48"L) is a flexible polyolefin tubing with a maximum operating temperature of 135 ℃ (275 ℉). It is 48 inches (1220 mm) long with an inner diameter before shrink of 1 inch (25.4 mm) and after shrink of 0.5 inch (12.7 mm). This single-wall heat shrink tubing has a shrink ratio of 2:1 and is flame retardant. It is suitable for various applications in access networks, long-haul/metro loop networks, and wireless networks. The product is CSA and UL recognized, with a flammability rating of UL 224. It has a tensile strength of 2400 pound-force per square inch and meets the requirements of Mil Spec AMS-DTL-23053/5, Class 1. The operating temperature range is -55 °C to +135 °C (-67 °F to 275 °F), and it is non-corrosive. The product is available in 48 inch (1.22 m) sticks. It has UL approval and can withstand a bug temperature of 257 °F and a bug voltage of 600 volts. The size is 25.4 mil (metric), and it meets the SAE-AMS-DTL-23053/5 class 1 specifications. - 7100034436
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
275 °F
Maximum Operating Temperature (Celsius)
135 °C
Overall Length (Imperial)
48 In
Flame Retardant
Yes
Component
Tubing & Molded Part
Material
Flexible Polyolefin
Heat Shrink Type
Single-Wall Polyolefin Heat Shrink Tubing
Tubing Type
Single Wall (Thin)
Overall Length (Metric)
1220 mm
Tubing Type
Single (Thin) Wall
Features
A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
