Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

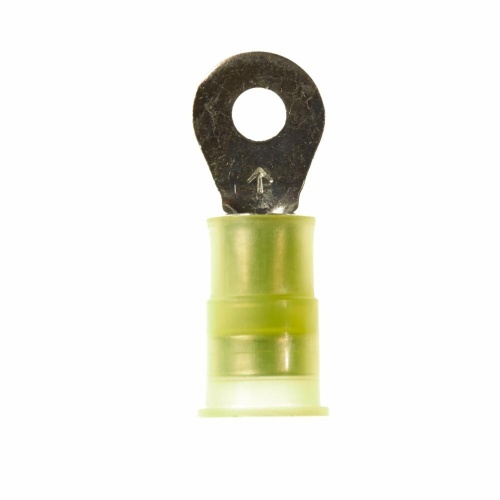

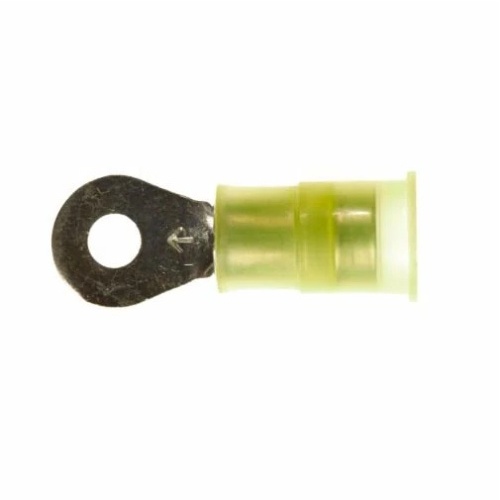

3M 7100167503 - Scotchlok™ Ring Tongue MN24-2RK, standard-style ring tongue fits,around the stud
Normally In Stock
Code: 475388
Scotchlok™ Ring Tongue MN24-2RK, standard-style ring tongue fits,around the stud - 7100167503
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1785.38
Sale Price
$1487.82
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, catalog number MN24-2RK, are designed for secure and efficient wire connections. With an overall length of 0.47 in and an overall width of 0.14 in, these terminals are suitable for various applications. They can accommodate conductors ranging from 26 to 24 AWG, providing a reliable connection. The nylon insulation material ensures durability and safety. The connection width is 0.086 in (2 mm), making it easy to install. - 7100167503
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Nylon
Overall Length (Imperial)
0.47 In
Minimum Conductor Size (Imperial)
26 AWG
Maximum Conductor Size (Imperial)
24 AWG
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.205 mm²
Minimum Conductor Size (Metric)
0.14 mm²
Features
Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Flared portion of the nylon sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
