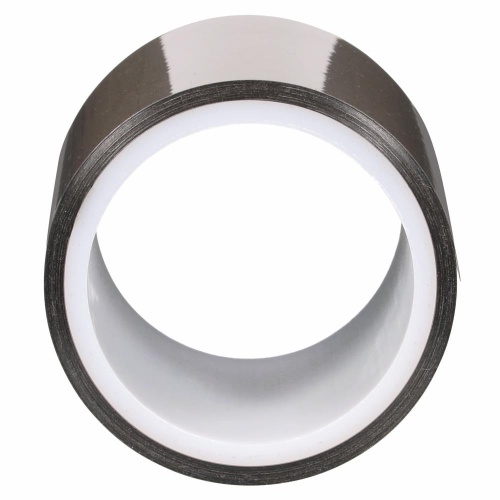

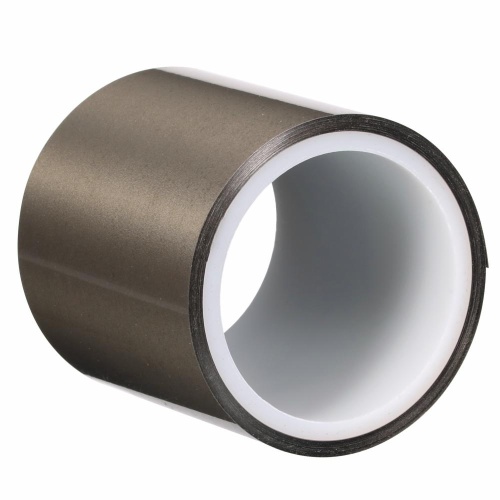

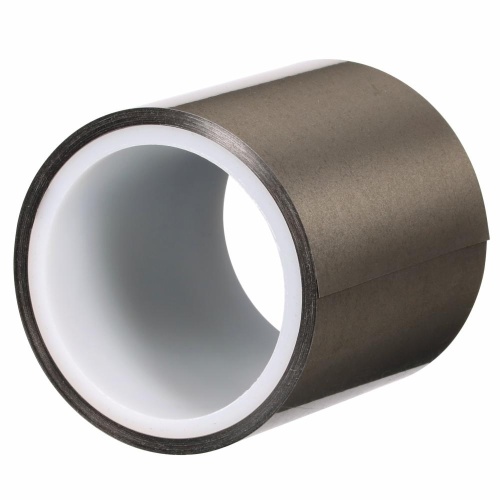

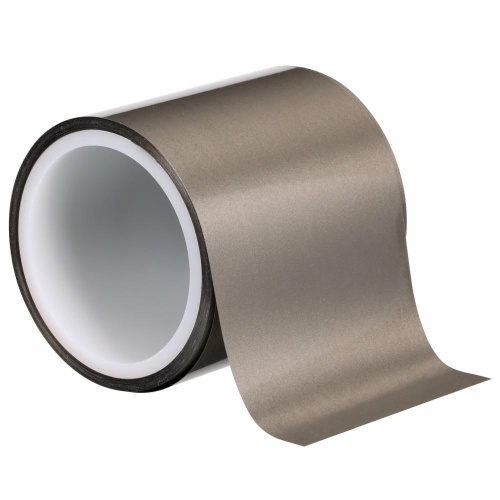

3M 7100315005 - 3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 105 mm x 10 m
Normally In Stock
Code: 473403
3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 105 mm x 10 m - 7100315005
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$570.71
Sale Price
$475.59
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100315005 - Conductive Adhesive Transfer Tape (Catalog Number 5113SFT-50) is a gray adhesive tape with a total thickness of 2 mil (0.05 mm). It is designed for use in camera modules, display chip on flex, display wraps, EMI shields, and sensors. The tape is made of woven fabric and has a maximum operating temperature of 250 ℉ (121 ℃) and a minimum operating temperature of -40 ℉ (-40 ℃). It has a shelf life of 48 months. The adhesive is a polyolefin type and the liner material is PET. The tape has an overall width of 4.134 inches (105 mm) and an overall length of 10.936 yards (10 m). It offers an adhesive strength of 1500 gf/in and has electrical resistance of 0.01 Ω in the XY-axis and 0.03 Ω in the Z-axis.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
10.936 Yd
Adhesive Type
Polyolefin
Width (Imperial)
4.134 In
Width (Metric)
105 mm
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
