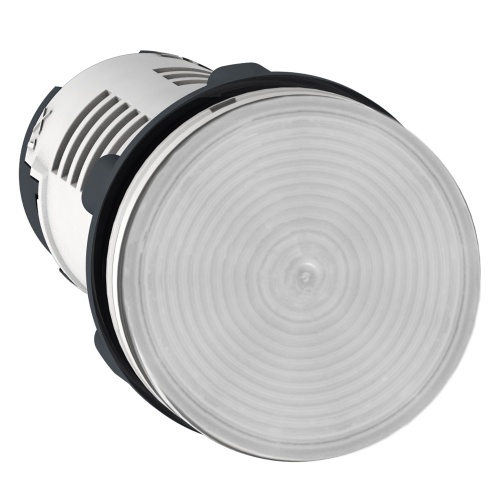

Schneider Electric XB7EV07GP Harmony 22 mm Round Clear Plastic Pilot Light Illuminated Flush 120 V AC Monolithic Complete Product
Normally In Stock
Code: 47152
Schneider Electric XB7EV07GP Harmony 22 mm Round Clear Plastic Pilot Light that is Illuminated with a Flush profile. Uses 120 V AC and is a Monolithic Complete Product and has Screw Clamp Terminals and is IP 65 rated and UL 508 certified. (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$41.88
Sale Price
$34.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB7EV07GP Harmony 22 mm Round Clear Plastic Illuminated Pilot Light Monolithic Complete Product is made of high quality materials and is designed to be simple and flexible with Screw Clamp Terminals and a Steady signal. Uses 120 V AC and is IP 65 and UL 508 rated.
Specifications
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Signal Type
Steady
(Switching-Indication) IP Rating
IP 65
(Switching-Indication) Color
Clear
(Switching-Indication) Current Consumption
18-21 mAmp
Manufacturer
Schneider Electric
Sub Component
Pilot Light
Features
This Harmony XB7, plain lens monolithic clear pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals
It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections
It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments
It has a double insulated plastic bezel
Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
