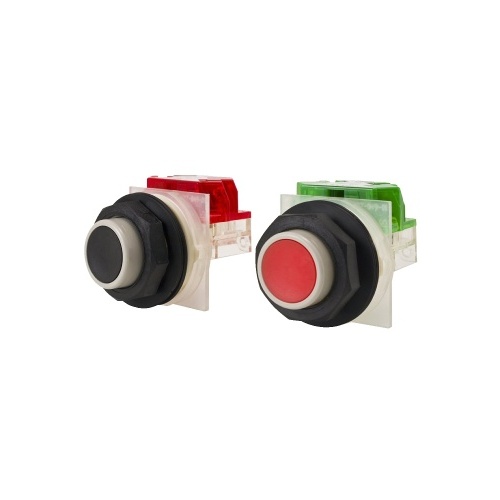

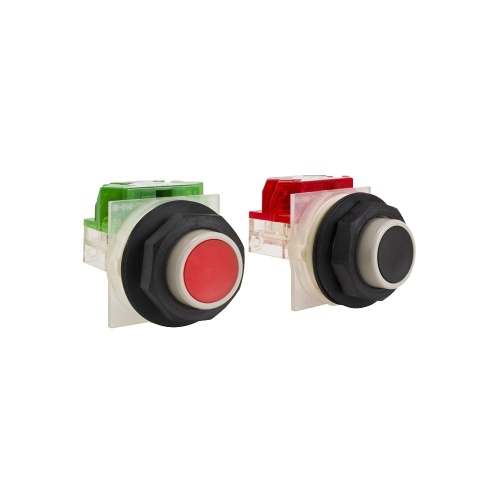

Schneider Electric 9001SKRU10 Harmony 30 mm Plastic Push Button Modular Head
Normally In Stock
Code: 47003
Schneider Electric 9001SKRU10 Harmony 30 mm Plastic Push Button that is . This product is a Modular Head and is IP 66 rated.
Condition: New
Usually ships Same Day or Next Day$131.29
Sale Price
$109.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 9001SKRU10 Harmony 30 mm Plastic Push Button Modular Head is made of high quality material and is designed to be simple and flexible. This product is IP 66 and rated and is .
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Composition
Plastic
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Amperage
10 Amp
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
The 9001SKRU push buttons are for use in 9001SKYP pendant stations
This line of yellow pendant stations consists of polymeric enclosures that will hold up to 10 push button operators
Type SKRU push buttons have a plastic operator that mounts in a 1.18 inch round hole
This push button consists of two momentary push button operators that are not interlocked
One operator has a no guard ring not with a black insert and a normally open contact
The other operator has a no guard ring nut with a red insert and a normally closed contact
Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating
The contacts in these contact blocks are double break
Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires
The contact block terminals are protected to meeting VDE 0106 Part 100
When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments
This operator is UL Listed and CSA certified
\It is installed into a Ø 30mm panel cutout.\,\The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
