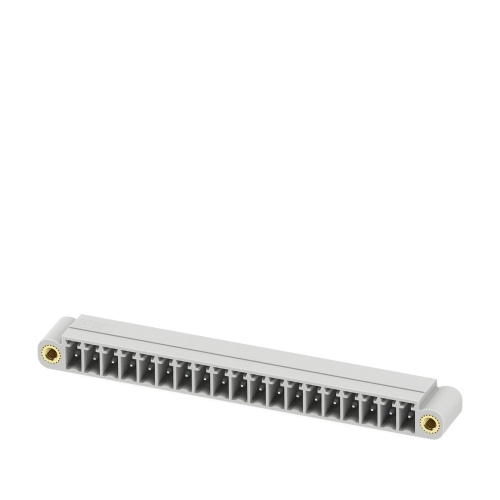

Phoenix Contact 5430784 PCB header BCH-350HF-19 GY
Normally In Stock
Code: 451936
Phoenix Contact 5430784 BCH-350HF-19 GY - PCB header, 8 Amp, 3.5 mm Pitch, Tin -
Condition: New
Usually ships Within 1 Week$6.29
Sale Price
$5.24
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 5430784 The PCB header features a nominal cross-sectional area of 1.5 mm² and has 19 signal gray headers with a rated current of 8 A and a maximum voltage rating of 160 V. The headers are connected to a Sn contact surface via pin connections, with each potential having 19 linearly arranged pins. The PCB header is designed for wave soldering mounting, features a BASICLINE 1.5 pin connector pattern, and is secured by screw locking mechanisms on threaded flange bases packaged in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Material
Tin
Manufacturer
Phoenix Contact
Component
PCB
Sub Component
PCB Header
Number of Positions
19
Number of Connections
19
Connector Voltage
160 Volt
Connector Pitch
3.5 mm
Connector Mounting Type
Wave Soldering
Connector Color
Signal Gray
Features
Well-known mounting principle allows worldwide use
Screwable flange for superior mechanical stability
