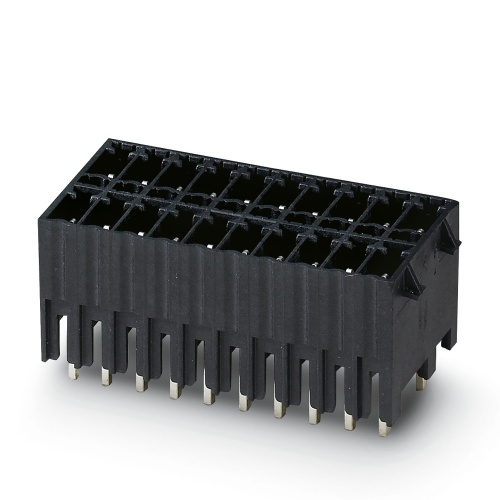

Phoenix Contact 1952733 The given product features a PCB header with a nominal cross-section area of 1.5mm², color black, and a maximum rated current of 8A, operating within a voltage range of 160V (III/2). The contact surface is made of Sn, using a pin connection type, with 32 potentials arranged in two rows, consisting of 16 positions and 32 connections. This product falls under the MCDNV 1,5/..-G1-RN-THR category, boasting a pitch of 3.5mm, suitable for both THR soldering/wave soldering mounting methods. The pin layout is linear, with individual solder pins measuring 2.6mm in length and 1 per potential. The COMBICON FMC 1,5 - MCDN 1,5 pin connector pattern alignment adheres to standard guidelines, while snap-in locking and engagement nose provide secure mounting options. This product is packaged in cardboard and features a pin length of 2.6mm.
