Code: 451240

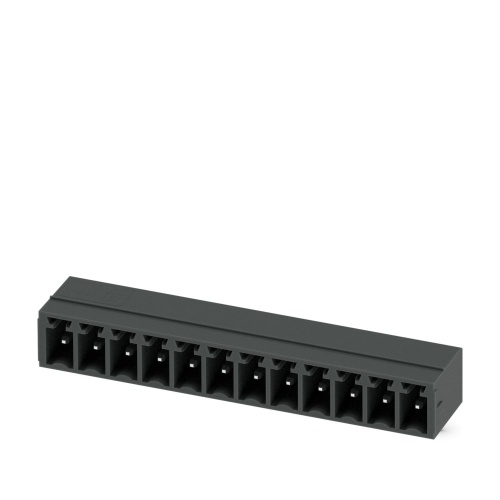

Phoenix Contact 1839788 PCB header MC 1,5/12-G-3,81 BK
Normally In Stock
Phoenix Contact 1839788 MC 1,5/12-G-3,81 BK - PCB header, 8 Amp, 3.81 mm Pitch, Tin -
Condition: New
Usually ships Within 1 Week$6.12
Sale Price
$5.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1839788 The PCB headers have a nominal cross-sectional area of 1.5mm², measured black in color, with a rated current of 8A and a maximum voltage rating of 160V (III/2). The contact surface is made of Sn and features pin connections, including 12 potentials, linear pinning, wave soldering mounting, and no locking mechanism. The product range includes the MC 1,5/..-G type and has a standard plug-in system using COMBICON MC 1,5 connectors with 1 solder pin per potential, aligned on a standard pattern.
Specifications
Connector Amperage
8 Amp
Connector Color
Black
Connector Material
Tin
Manufacturer
Phoenix Contact
Number of Connections
12
Number of Positions
12
Component
PCB
Sub Component
PCB Header
Connector Voltage
160 Volt
Connector Mounting Type
Wave Soldering
Connector Pitch
3.81 mm
Features
Well-known mounting principle allows worldwide use
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
