Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

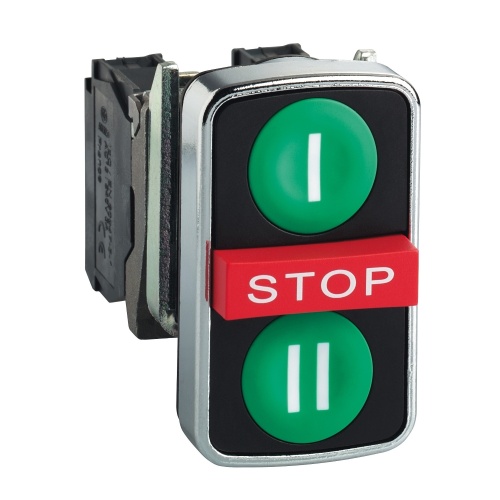

Schneider Electric XB4BA731327 Harmony 22 mm Rectangular Green and Red Chromium plated metal Multiple Push Buttons Non-Illuminated Projecting and Flush 1 NO + 1 NC + 1 NO Modular Complete Assembly
Normally In Stock
Code: 44899
Schneider Electric XB4BA731327 Harmony 22 mm Rectangular Green and Red Chromium plated metal Multiple Push Buttons that is Non-Illuminated with a Projecting and Flush profile. This product is a Modular Complete Assembly and has 1 NO + 1 NC + 1 NO and is IP 69 rated and UL 508 cer
Condition: New
Usually ships Same Day or Next Day$208.38
Sale Price
$173.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB4BA731327 Harmony 22 mm Rectangular Green and Red Chromium plated metal Non-Illuminated Multiple Push Buttons Modular Complete Assembly with a Projecting and Flush profile is made of high quality material and is designed to be simple and flexible. Has 1 NO + 1 NC + 1 NO contacts with Spring return functionality. This product is IP 69 and UL 508 rated and is Marked Green ''I'' - green ''II'' - red ''STOP''.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Size
22 mm
(Switching-Indication) Contact Configuration
2 NO
(Switching-Indication) Color
Green
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Shape
Rectangular
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
