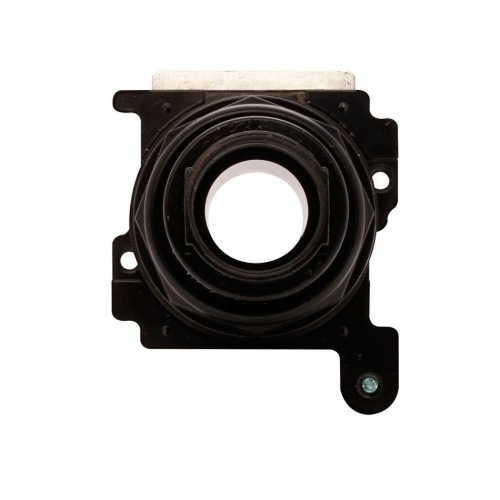

Eaton E34GHB Pushbutton, E34 Series, 30.5 mm
Normally In Stock
Code: 447530
Eaton E34GHB - Class I Division 2 - Use NEMA 4X 10250T operators where exposed to ultraviolet light *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$174.94
Sale Price
$145.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E34GHB - 30.5 mm Watertight/Oiltight Corrosion Resistant Push-Pull Unit,Class I Division 2,Standard Actuator,Plastic bus,Non-illuminated,Three-position,Momentary push and pull, maintained intermediate,40 mm button,E34 Series
Specifications
(Switching-Indication) Positions
3 Positions
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 4X
Component
Push Button
Manufacturer
Eaton
(Switching-Indication) Size
30.5 mm
(Switching-Indication) Operation
Push: Maintained
(Switching-Indication) Operation
Intermediate: Maintained
(Switching-Indication) Operation
Pull: Momentary
Features
Enclosed silver contacts with reliability nibs
Diaphragm seals with drainage holes
Grounding nibs on the self-grounding operators
Durable chrome finish with added corrosion resistance
Rugged, one-piece metal body
Controlled compression sealing gasket
Widest variety of product offering using a single metal operator housing
NEMA Class 1 Div 2 rating
Epoxy-coated metal operators
FDA approved for sanitary chemical resistance requirements
