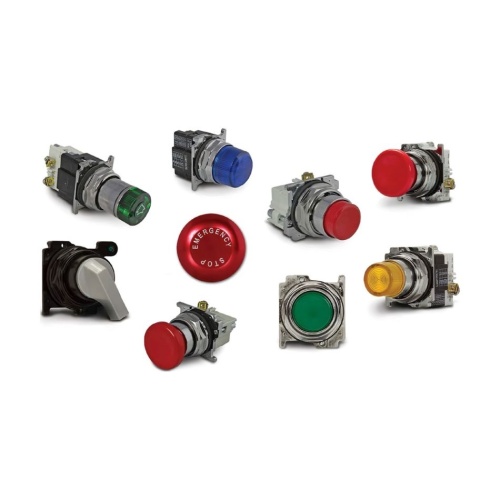

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Eaton E34GFBC2N8-3X Pushbutton, E34 Series, 40 mm, Red
Normally In Stock
Code: 447529
Eaton E34GFBC2N8-3X - Class I Division 2 - Parts assembled from factory. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$183.46
Sale Price
$152.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E34GFBC2N8-3X - 30.5 mm Corrosion Resistant Push-Pull Unit,Factory Assembled,Class I Division 2,Standard Actuator,Red,Plastic bus,2NC,Non-illuminated,EMER. STOP,Three-position,Maintained push and intermediate, momentary pull,40 mm button,E34 Series
Specifications
(Switching-Indication) Positions
3 Positions
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Color
Red
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Contact Configuration
2 NC
(Switching-Indication) Size
40 mm
Component
Push Button
Manufacturer
Eaton
(Switching-Indication) Push Button Type
Standard
(Switching-Indication) Operation
Push: Maintained
(Switching-Indication) Operation
Intermediate: Maintained
(Switching-Indication) Operation
Pull: Momentary
Features
Enclosed silver contacts with reliability nibs
Diaphragm seals with drainage holes
Grounding nibs on the self-grounding operators
Durable chrome finish with added corrosion resistance
Rugged, one-piece metal body
Controlled compression sealing gasket
Widest variety of product offering using a single metal operator housing
NEMA Class 1 Div 2 rating
Epoxy-coated metal operators
FDA approved for sanitary chemical resistance requirements
