Code: 442896

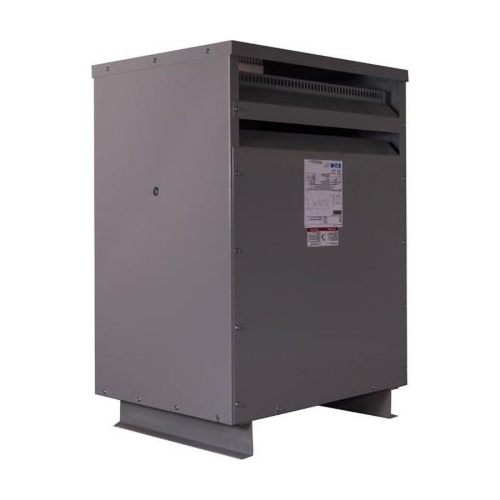

Eaton T24M48B35T16CU Ventilated Transformer - Single Phase,
Normally In Stock
Eaton T24M48B35T16CU - Single Phase - Max Input: 240V - Max Output: 480V - 42" x 24.2" x 23.8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$15218.76
Sale Price
$12682.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton T24M48B35T16CU - General purpose ventilated transformer - DS-3 (1-phase) - PV 240V - Taps: 2 at +2.5% /4 at -2.5% - SV 480 delta - 80°C rise - Thermal indicator - 16 - CU
Specifications
Transformer Voltage Phases
Single Phase
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Secondary Voltage Out
480V
Transformer Primary Voltage In
240V
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
