Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 43006

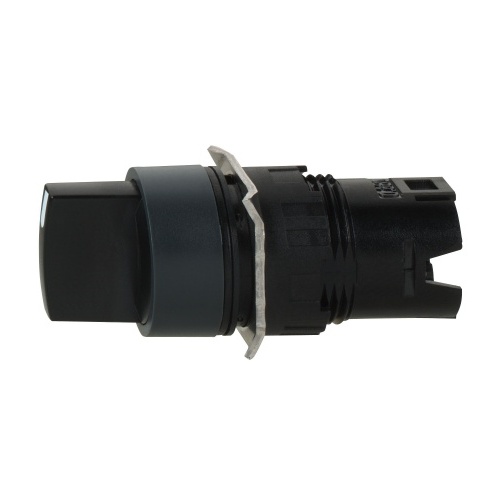

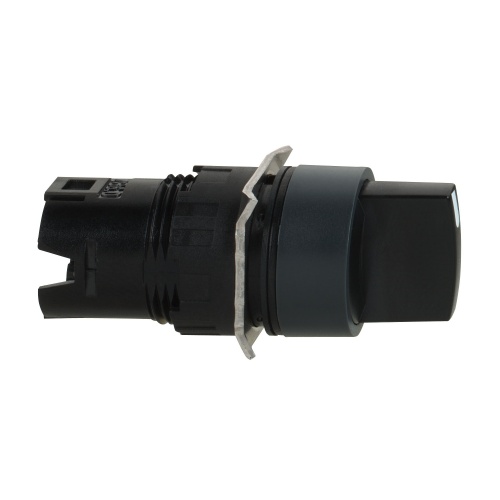

Schneider Electric XB6AD233B Harmony Plastic Key Selector Switch Complete Assembly Square 16 mm 2 NO IP 65
Normally In Stock
Schneider Electric XB6AD233B Harmony Plastic Key Selector Switch Complete Assembly Square 16 mm 2 NO IP 65 Black standard handle Black 3 positions 60°
Condition: New
Usually ships Same Day or Next Day$43.70
Sale Price
$36.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric XB6AD233B Harmony Key Selector Switch is designed to be simple, flexible and durable. This device is Square with a size of 16 mm. 2 NO IP 65 Black standard handle Black with 3 positions 60° and Stay put functionality.
Specifications
(Switching-Indication) Positions
3 Positions
(Switching-Indication) Color
Black
(Switching-Indication) Profile
Handle
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Operation
Maintained
(Switching-Indication) Contact Configuration
2 NO
(Switching-Indication) Composition
Plastic
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Size
16 mm
(Switching-Indication) IP Rating
IP 65
(Switching-Indication) Shape
Square
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Position Angles
60°
Manufacturer
Schneider Electric
Component
Selector Switch
Features
XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted
These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more
This operator is a complete 16mm plastic 3 position selector switch
Each of the selector switch positions is 60 degrees apart
The selector switch has a black knob
Selector switch has 2 normally open contacts
Contacts has a UL B300 and UL R300 current rating
Contacts has 2.8 x 0.5 mm faston connectors
Selector switch is 0.71 inches tall, 0.71 inches wide and 2.68 inches deep
Selector switch weighs 0.05 lbs
Operator is NEMA 4, 4X and 13 rated
Selector switch is UL listed and CSA certified
\It is installed into a Ø 16mm panel cutout.\,\The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications.\
