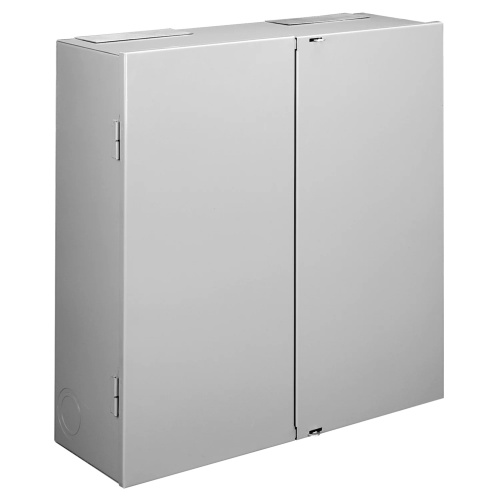

Hoffman AMC202010UG Metering Enclosure, Type 1
Hoffman AMC202010UG Metering, Type 1 Indoor 20" x 20" x 10" (HxWxD) Steel Enclosure. Wall Mount Painted Steel with Pull Latch latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $751.80
Sale Price:
$523.58

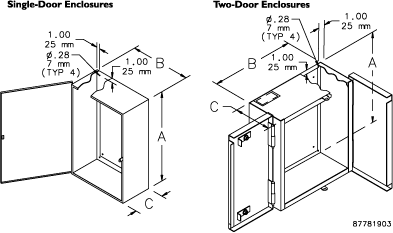

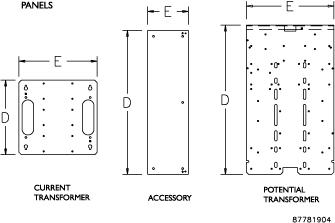

Hoffman AMC202010UG Metering Enclosure, Type 1 Metering Enclosure, Type 1 houses metering transformers and instrument assemblies in indoor applications. HQ models meet Hydro-Québec requirements. It includes one potential transformer and one current transformer panel and one pre-punched accessory. Hinged door with pull latch and provision for padlocking, Mounting holes in back, and Gland plates on top of two-door enclosure for meter connection.
| Specifications | |
| Component | Commercial Enclosure |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Depth | 10" |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Height | 20" |
| Enclosure Width | 20" |
| Manufacturer | Hoffman |
| Enclosure Environment Rating | Indoor |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Composition | Steel |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 1 |
| Enclosure Type | Metering Enclosure |
