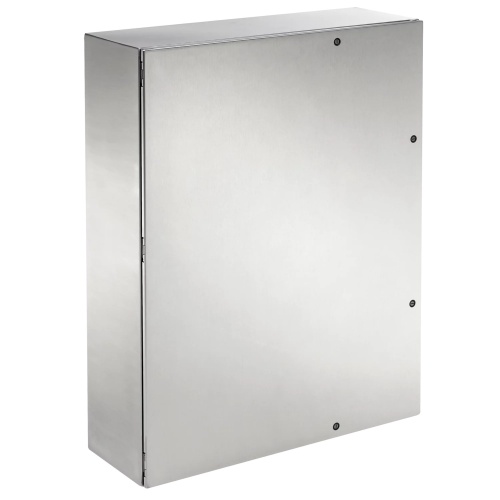

nVent Hoffman CSD603624SS6R 60"x36"x24" CONCEPT with Additional Quarter-Turn Latches, Type 4X
Normally In Stock
Code: 42814
nVent Hoffman CSD603624SS6R Enclosure 316 Stainless Steel CONCEPT with Additional Quarter-Turn Latches, Type 4X Outdoor-Indoor 60" x 36" x 24" (HxWxD). Standard Hinge, Quarter Turn latch with 1 Door. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$10995.04
Sale Price
$9162.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD603624SS6R 60"x36"x24" CONCEPT with Additional Quarter-Turn Latches, Type 4X For indoor or outdoor applications that require corrosion protection from chemicals and water, CONCEPT enclosures house larger controls and feature streamlined styling with an attractive stroked finish, flush quarter-turn latches and an integral door ramp that ensures the door gasket sealing surface aligns with the enclosure body for secure closure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Depth
24"
Enclosure Composition
316L Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
36"
Enclosure Height
60"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
Corner formed doors
External formed 90-degree body flange
Integral door alignment device to properly align door and gasket to body offset
Minimum-width body flange provides maximum body opening
Seams continuously welded and ground smooth
Panel mounting studs fit optional Concept panels and other accessories
Provision on door for thermoplastic data pocket
Doors are interchangeable and easily removed by pulling clip-style hinge pins
Stainless steel hidden hinges
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Provision on door for optional doorstop kit
Seamless foam-in-place gasket
Bonding provision on door, grounding stud on body
Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
Installation instructions
Self-grounding latch system with double seal
Downloads
Hoffman CSD603624SS6R 2D DXF CAD.zipHoffman CSD603624SS6R 3D STEP CAD.zipHoffman CSD603624SS6R Declaration of Compliance.pdfHoffman CSD603624SS6R Dimension Drawing.gifHoffman CSD603624SS6R EU Certification.pdfHoffman CSD603624SS6R Instruction Manual.pdfHoffman CSD603624SS6R Spec Sheet.pdfHoffman CSD603624SS6R UL Certification.pdf
