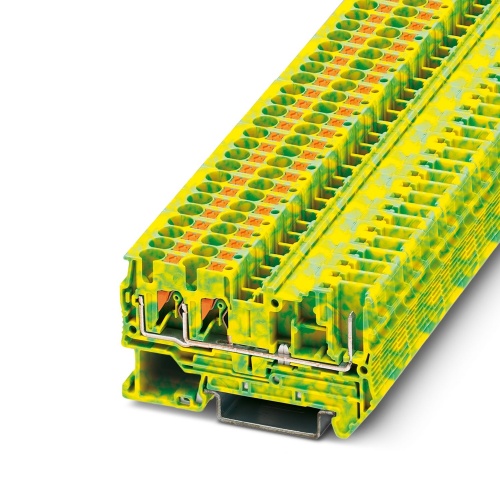

Phoenix Contact 3212202 Protective conductor terminal block PT 4-TWIN/1P-PE
Normally In Stock
Code: 42422
PT 4-TWIN/1P-PE Phoenix Contact 3212202 Ground modular Terminal Block - PT 4-TWIN/1P-PE Push-In Connection 1 Level 3.5 mm with 3 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$7.32
Sale Price
$6.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212202 A protective conductor terminal block uses a push-in/plug connection method with rated cross-sections ranging from 0.2 mm² to 6 mm². It can be mounted on platforms designated as NS 35/7.5 and NS 35/15, and is typically identified by its green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212202 CAD data International.dxfPhoenix 3212202 CAD data International.pdfPhoenix 3212202 CAD data International.stpPhoenix 3212202 Manufacturers declaration International-2.pdfPhoenix 3212202 Manufacturers declaration International.pdfPhoenix 3212202 Safety note English.pdfPhoenix 3212202 Tender Text English.zip
