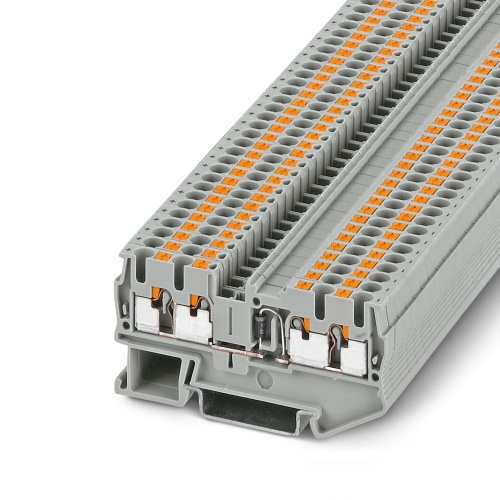

Phoenix Contact 3210266 Component terminal block PT 2,5-QUATTRO-DIO/L-R
Normally In Stock
Code: 42171
PT 2,5-QUATTRO-DIO/L-R Phoenix Contact 3210266 Component Terminal Block - PT 2,5-QUATTRO-DIO/L-R Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 800 V, 0.5 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.61
Sale Price
$6.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

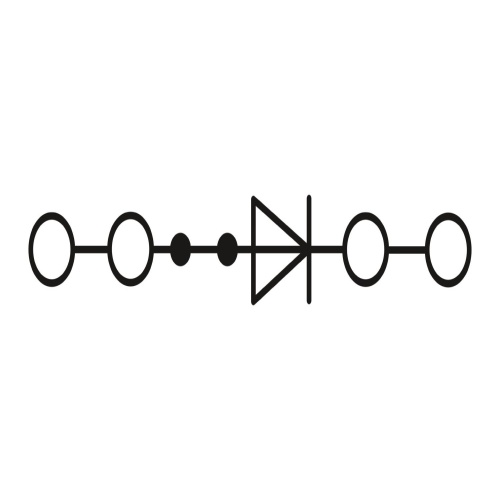

Phoenix Contact 3210266 A component terminal block is available with an integrated 1N4007 diode, featuring a nominal voltage of 800V and a maximum current rating of 0.5A, accommodating up to four connections via a push-in connection method. The rated cross-sectional area of the cable is between 2.5mm² and 4mm², with multiple mounting options including NS35/7.5 and NS35/15, and a characteristic color of gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3210266 CAD data International.dxfPhoenix 3210266 CAD data International.pdfPhoenix 3210266 CAD data International.stpPhoenix 3210266 Manufacturers declaration English.pdfPhoenix 3210266 Manufacturers declaration International-2.pdfPhoenix 3210266 Manufacturers declaration International.pdfPhoenix 3210266 Safety note English.pdfPhoenix 3210266 Tender Text English.zip
