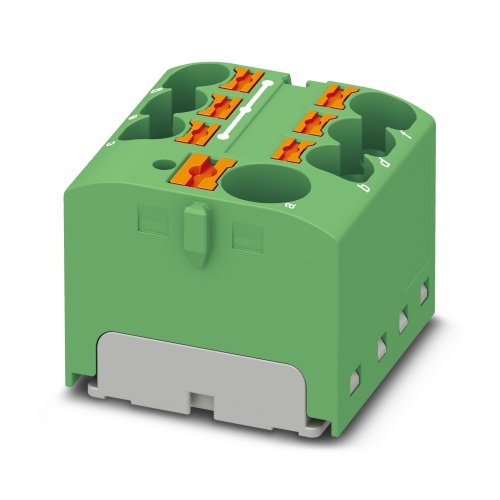

Phoenix Contact 3273864 Distribution block PTFIX 10/6X4 GN
Normally In Stock
Code: 42004
PTFIX 10/6X4 GN Phoenix Contact 3273864 Distribution Block - PTFIX 10/6X4 GN Push-In Connection 1 Level 27.9 mm with 7 Connections. Not Grounded, Not Fused Green. 450 V, 57 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.68
Sale Price
$3.07
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273864 The distribution block has a nominal voltage of 450 V and a nominal current of 41 A, featuring seven connections that utilize push-in connection methods. The load contacts have rated cross sections ranging from 0.2 to 6 mm2, while the line contacts have ratings between 10 mm2 and 10 mm2. Available mounting types include snapping onto a DIN rail adapter, direct mounting with flange, free-hanging, and colored green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
27.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 3273864 CAD data International.dxfPhoenix 3273864 CAD data International.pdfPhoenix 3273864 CAD data International.stpPhoenix 3273864 Manufacturers declaration International-2.pdfPhoenix 3273864 Manufacturers declaration International.pdfPhoenix 3273864 Safety note English.pdfPhoenix 3273864 Tender Text English.zip
