Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41691

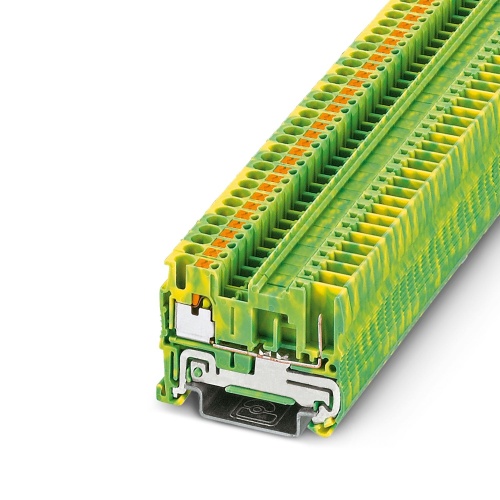

Phoenix Contact 3210059 Protective conductor terminal block PT 2,5/1P-PE
Normally In Stock
PT 2,5/1P-PE Phoenix Contact 3210059 Ground modular Terminal Block - PT 2,5/1P-PE Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$4.74
Sale Price
$3.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210059 A protective conductor terminal block with a 2-con connection type uses push-in/plug connections, featuring rated cross sections ranging from 0.14mm² to 4mm² and is mounted using the NS35/7.5 or NS35/15 mounting types, typically colored in green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3210059 CAD data International.dxfPhoenix 3210059 CAD data International.pdfPhoenix 3210059 CAD data International.stpPhoenix 3210059 Manufacturers declaration International-2.pdfPhoenix 3210059 Manufacturers declaration International.pdfPhoenix 3210059 Safety note English.pdfPhoenix 3210059 Tender Text English.zip
