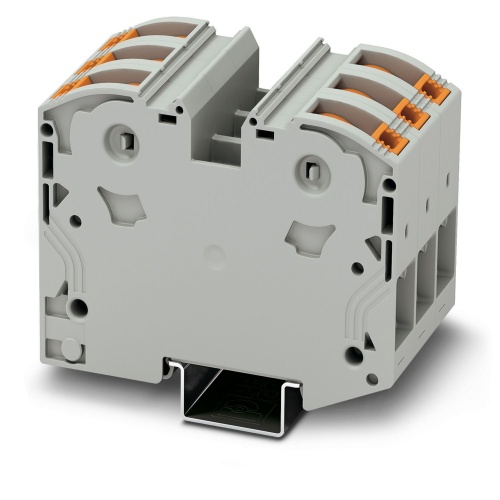

Phoenix Contact 3212068 High-current terminal block PTPOWER 35-3L
Normally In Stock
Code: 41528
PTPOWER 35-3L Phoenix Contact 3212068 High-current Terminal Block - PTPOWER 35-3L Power-Turn Connection 1 Level 48 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 V, 125 A max rating.
Condition: New
Usually Ships Same day or Next Day$35.95
Sale Price
$29.96
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212068 A high-current terminal block with a blocked configuration has a nominal voltage of 1000 V and can handle up to 125 A of current, accommodating six connections across three positions using the PowerTurn connection method. The rated cross section is 35 mm2, with an actual range of 2.5 mm2 to 35 mm2, and it features an NS 35/15 mounting type and a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
48 mm
Terminal Block Number of Connections
6
Terminal Block Component Color
Gray
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
12
Terminal Block Connection Method
Power-Turn Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212068 Application Note International.jpgPhoenix 3212068 CAD data International.dxfPhoenix 3212068 CAD data International.pdfPhoenix 3212068 CAD data International.stpPhoenix 3212068 Manufacturers declaration International-2.pdfPhoenix 3212068 Manufacturers declaration International.pdfPhoenix 3212068 Package Slip International.pdfPhoenix 3212068 Safety note English.pdfPhoenix 3212068 Tender Text English.zip
