Code: 41455

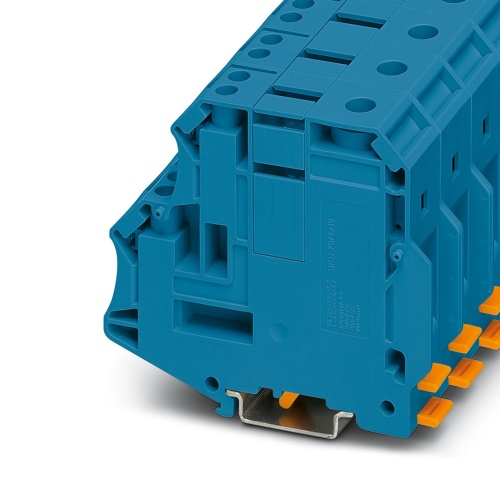

Phoenix Contact 3213143 Potential collective terminal UKH 70/4X10 BU
Normally In Stock
UKH 70/4X10 BU Phoenix Contact 3213143 Potential collective Terminal - UKH 70/4X10 BU Screw Connection 1 Level 20.3 mm with 5 Connections. Not Grounded, Not Fused Blue. 1000 Volt, 57 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$77.34
Sale Price
$64.45
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213143 The terminal's specifications include a potential collective terminal voltage of 1500 V and a nominal current of 192 A, with five connections available, arranged in one position. The connections use a screw method with varying cross-sections, ranging from 16 mm² to 1.5 mm², and are secured using different mounting types including NS 35/7.5, NS 35/15, NS 35/15-2.3, and NS 32. The terminal is identified by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
5
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
192 Amp
Sub Component
High Current Terminal Block
Sub Component
Potential Collective Terminal
Features

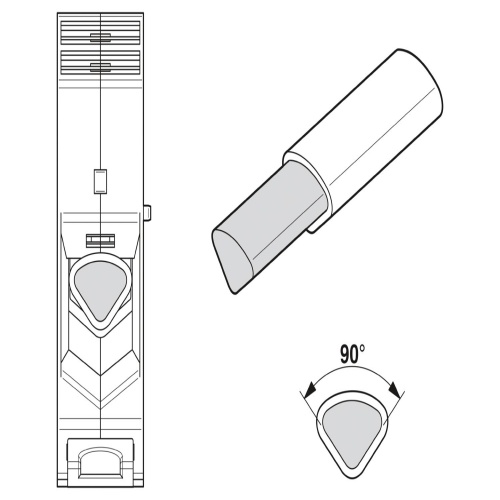

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
