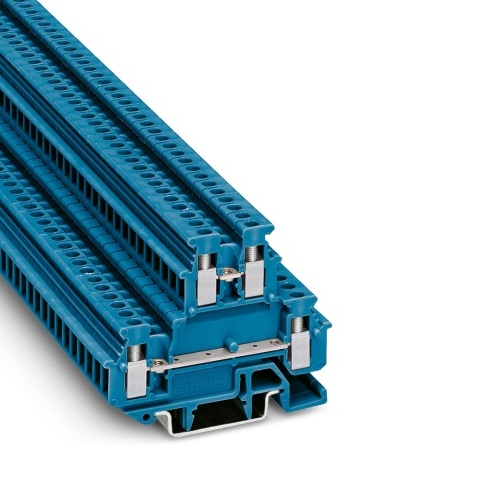

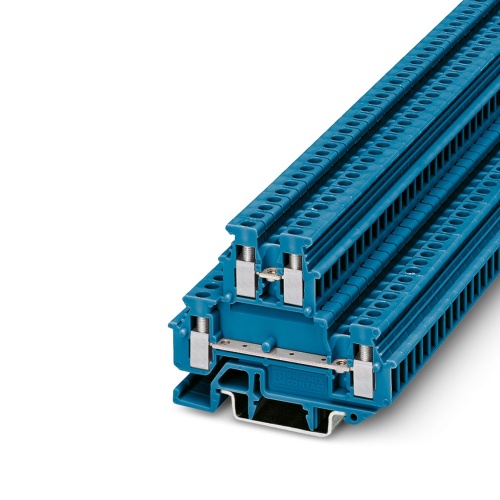

Phoenix Contact 1414077 Mini feed-through terminal block MBKKB 2,5 BU
Normally In Stock
Code: 41054
MBKKB 2,5 BU Phoenix Contact 1414077 Mini Feed Through Terminal Block - MBKKB 2,5 BU Screw Connection 2 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 500 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$8.06
Sale Price
$6.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414077 A mini feed-through terminal block is available with a nominal voltage of 500 V and a maximum current rating of 24 A. The connection method features screw attachments for both the first and second levels, while the rated cross-section is 2.5 mm2. The cable cross-section can range from 0.2 mm2 to 4 mm2, and the terminal block can be mounted using NS 15, NS 35/7.5, or NS 35/15 types, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Fixed bridges and test sockets can be used on both levels
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 1414077 CAD data International.dxfPhoenix 1414077 CAD data International.pdfPhoenix 1414077 CAD data International.stpPhoenix 1414077 Certification English.pdfPhoenix 1414077 Certification International.pdfPhoenix 1414077 Manufacturers declaration English.pdfPhoenix 1414077 Manufacturers declaration International.pdfPhoenix 1414077 Safety note English.pdfPhoenix 1414077 Tender Text English.zipPhoenix 1414077 User instructions for the Ex Area English.pdf
