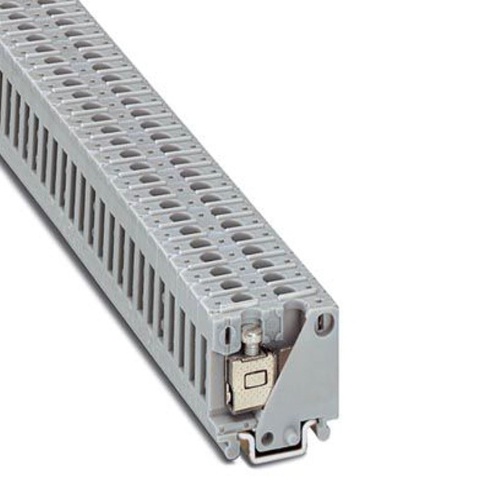

Phoenix Contact 1407013 Mini feed-through terminal block MBK-FS
Normally In Stock
Code: 41051
MBK-FS Phoenix Contact 1407013 Mini Feed Through Terminal Block - MBK-FS Screw Connection 1 Level 4.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 Volt, 16 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4.44
Sale Price
$3.70
MUST BUY IN PACKS OF 200
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1407013 A mini feed-through terminal block with specifications including a nominal voltage of 400V, a nominal current of 16A and two connections that are secured via screw connection on the left side, have cross-sections ranging from 0.2mm² to 2.5mm², are mounted using an NS15 type, and feature a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
14
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges
