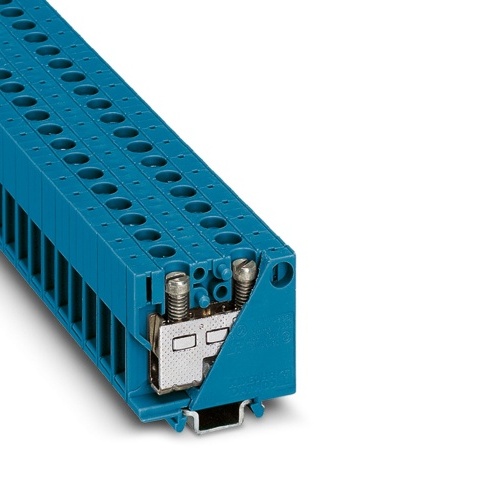

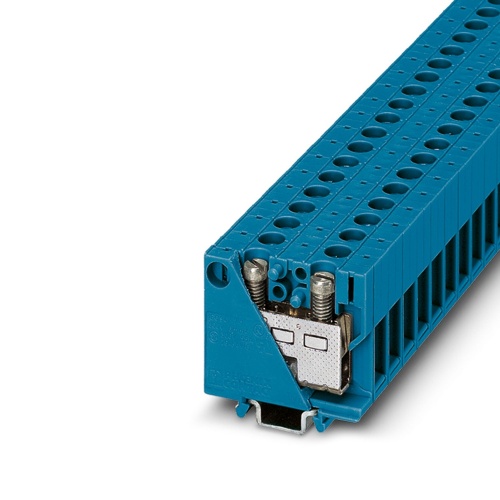

Phoenix Contact 1402092 Mini feed-through terminal block MBK 10 BU
Normally In Stock
Code: 41050
MBK 10 BU Phoenix Contact 1402092 Mini Feed Through Terminal Block - MBK 10 BU Screw Connection 1 Level 7.5 mm with 2 Connections. Not Grounded, Not Fused Blue. 500 Volt, 61 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$7.28
Sale Price
$6.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1402092 The mini feed-through terminal block features a nominal voltage rating of 500 V and can handle up to 61 A of current, accommodating two connections via screw-in terminals with one level and varying cross-sections from 0.5 mm² to 10 mm², mounted using the NS 15 type and available in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
7.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
61 Amp
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
