Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

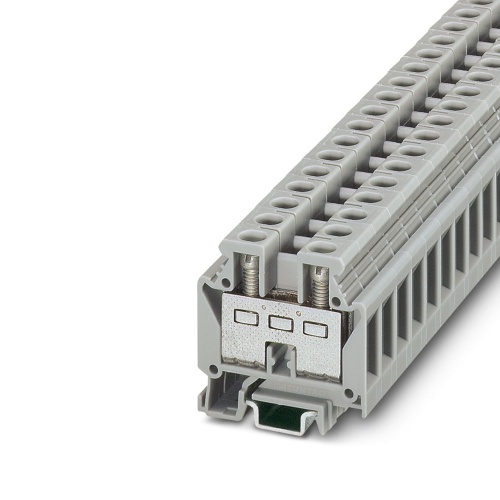

Phoenix Contact 0552024 Mini feed-through terminal block MBK 6/E
Normally In Stock
Code: 41048
Phoenix Contact 0552024 Mini Feed Through Terminal Block - MBK 6/E Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 Volt, 41 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5.22
Sale Price
$4.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0552024 The mini feed-through terminal block features a nominal voltage of 500 V and a nominal current capacity of 41 A, accommodating up to two connections via screw connection, with rated cross sections ranging from 0.5 mm2 to 10 mm2 and is mounted using the NS15 type, with a color option of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features

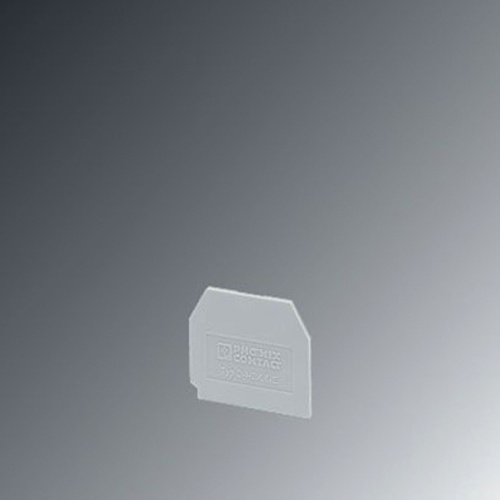

Separating disks, partition plates, and test sockets complete the range of accessories

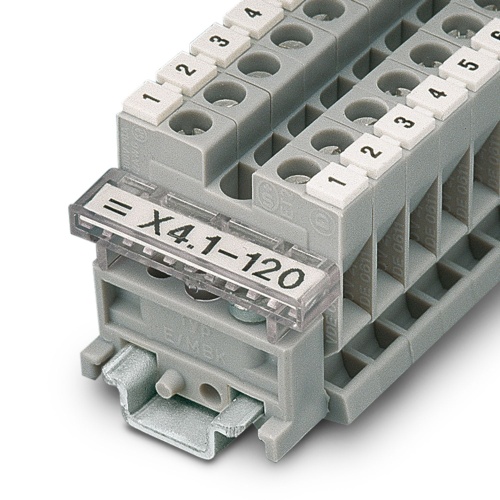

Clear arrangement thanks to marking of all terminal points

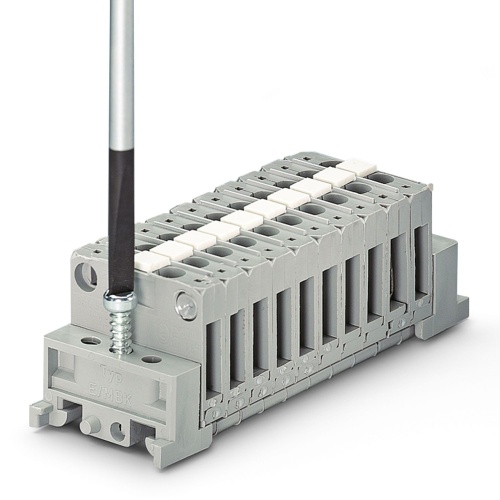

Space saving thanks to compact design and mounting option on a 15 mm DIN rail

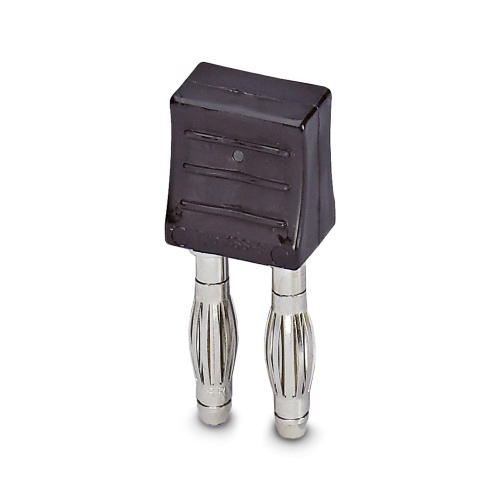

Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 0552024 CAD data International.dxfPhoenix 0552024 CAD data International.pdfPhoenix 0552024 CAD data International.stpPhoenix 0552024 Certification English-2.pdfPhoenix 0552024 Manufacturers declaration International-2.pdfPhoenix 0552024 Manufacturers declaration International.pdfPhoenix 0552024 Safety note English.pdfPhoenix 0552024 Tender Text English.zipPhoenix 0552024 User instructions for the Ex Area International.pdf
