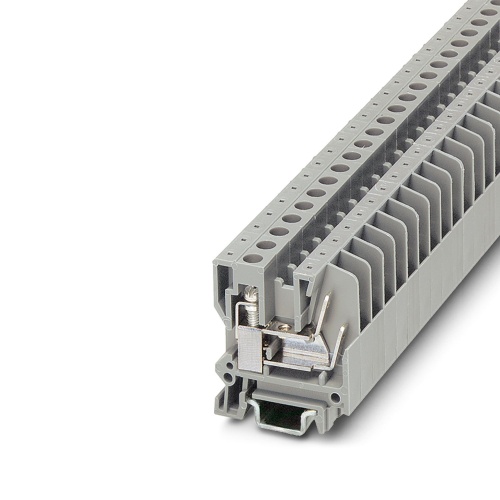

Phoenix Contact 1418073 Mini feed-through terminal block MBK 5/E-FS
Normally In Stock
Code: 41044
MBK 5/E-FS Phoenix Contact 1418073 Mini Feed Through Terminal Block - MBK 5/E-FS Screw Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 Volt, 16 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5.47
Sale Price
$4.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1418073 The mini feed-through terminal block has a nominal voltage of 500 V and can handle up to 16 A of current. It features a screw/plug-in connection method with a rated cross-sectional area of 4 mm², and its available cross-section ranges from 0.2 mm² to 4 mm². The module is mounted using an NS 15 standard and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
This terminal block has a proven screw connection on the outside of the control cabinet
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 1418073 CAD data International.dxfPhoenix 1418073 CAD data International.pdfPhoenix 1418073 CAD data International.stpPhoenix 1418073 Manufacturers declaration English.pdfPhoenix 1418073 Manufacturers declaration International.pdfPhoenix 1418073 Safety note English.pdfPhoenix 1418073 Tender Text English.zip
