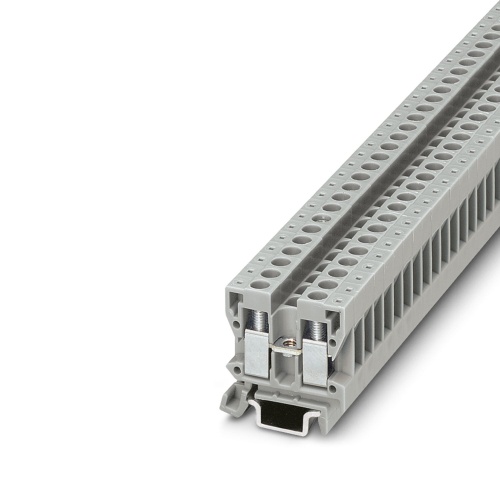

Phoenix Contact 1414006 Mini feed-through terminal block MBK 2,5/E
Normally In Stock
Code: 41033
MBK 2,5/E Phoenix Contact 1414006 Mini Feed Through Terminal Block - MBK 2,5/E Screw Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 250 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4.56
Sale Price
$3.80
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414006 A mini feed-through terminal block has a nominal voltage of 250 V and a maximum current capacity of 24 A. It features two connections with screw attachments and has an approved cross-sectional area ranging from 0.2 to 2.5 mm². The mounting type is NS15 and the device is typically gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
14
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Separating disks, partition plates, and test sockets complete the range of accessories
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 1414006 CAD data International.dxfPhoenix 1414006 CAD data International.pdfPhoenix 1414006 CAD data International.stpPhoenix 1414006 Certification English.pdfPhoenix 1414006 Certification International.pdfPhoenix 1414006 Manufacturers declaration English.pdfPhoenix 1414006 Manufacturers declaration International.pdfPhoenix 1414006 Safety note English.pdfPhoenix 1414006 Tender Text English.zipPhoenix 1414006 User instructions for the Ex Area English.pdf
