Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

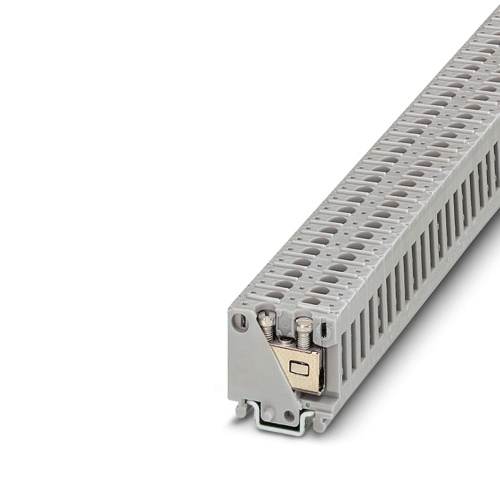

Phoenix Contact 1401019 Mini feed-through terminal block MBK
Normally In Stock
Code: 41031
MBK Phoenix Contact 1401019 Mini Feed Through Terminal Block - MBK Screw Connection 1 Level 5 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 Volt, 17.5 Amp max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4.56
Sale Price
$3.80
MUST BUY IN PACKS OF 200
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1401019 A mini feed-through terminal block with a nominal voltage of 500 V and a high current capacity of 17.5 A has two connections that can be secured using a screw connection. The block features a smaller cross-sectional area to minimize its size, allowing for tighter mounting with an NS15 type and a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
MBK ... mini strip terminal blocks and their variants represent the original, typical shape of the MBK ... range
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points

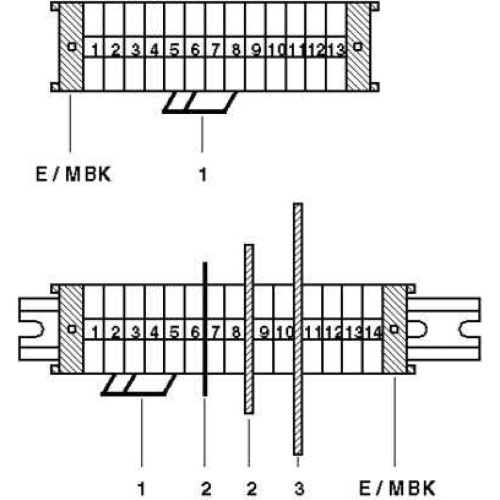

Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 1401019 CAD data International.dxfPhoenix 1401019 CAD data International.l,Phoenix 1401019 CAD data International.pdfPhoenix 1401019 CAD data International.stpPhoenix 1401019 Manufacturers declaration International.pdfPhoenix 1401019 Safety note English.pdfPhoenix 1401019 Tender Text English.zip
