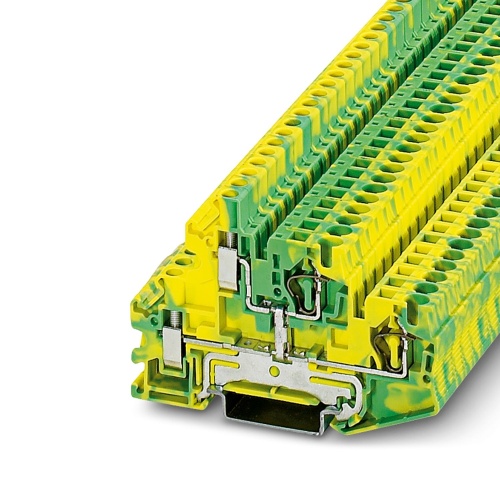

Phoenix Contact 3033171 Double-level spring-cage terminal block STTBU 4-PE
Normally In Stock
Code: 40895
STTBU 4-PE Phoenix Contact 3033171 Double-level spring-cage Terminal Block - STTBU 4-PE Spring Cage Connection 2 Level 6.2 mm with 4 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$14.48
Sale Price
$12.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3033171 A double-level spring-cage terminal block is available in two different connection methods and cross-sectional sizes. For the spring-cage connection, cross-sections range from 0.08 to 6 mm², while screw connections have cross-sections between 0.14 to 6 mm². The terminal blocks are mounted on standard NS 35/7,5 and NS 35/15 bases, and feature a green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
36 Amp
Sub Component
Ground Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
For a clear overview, each terminal point can be labeled
Can be bridged in both levels to implement different switching tasks
Can be consistently bridged to the STTB 4 standard double-level terminal blocks
Downloads
Phoenix 3033171 CAD data International.dxfPhoenix 3033171 CAD data International.pdfPhoenix 3033171 CAD data International.stpPhoenix 3033171 Manufacturers declaration English.pdfPhoenix 3033171 Manufacturers declaration International.pdfPhoenix 3033171 Safety note English.pdfPhoenix 3033171 Tender Text English.zip
