Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 40851

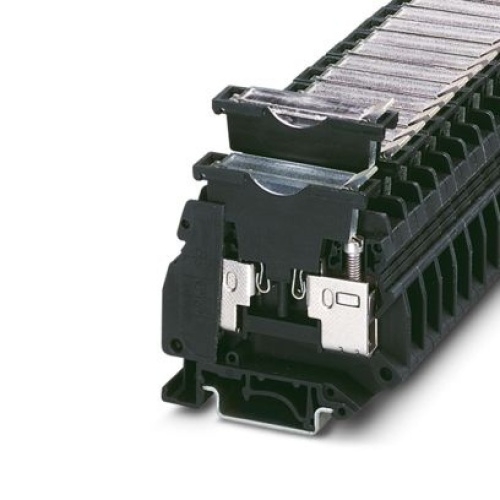

Phoenix Contact 0920083 Fuse modular terminal block USIG
Normally In Stock
Phoenix Contact 0920122 Fuse modular Terminal Block - USIG BU - Fuse modular Terminal Block, with fuse plug, fuse type: Glass Screw Connection 1 Level 10.2 mm with 2 Connections. Not Grounded, Fused Blue. 500 Volt, 10 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$16.97
Sale Price
$14.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0920083 A modular terminal block with a fuse is available, characterized by a nominal voltage of 500 V and a nominal current of 10 A. The connection method is screw-based and features a rated cross-sectional area of 1.5 mm2, allowing for larger cross-sections up to 16 mm2. It can be mounted using options NS 35/7,5, NS 35/15, or NS 32, with the unit itself featuring a black coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 5 X 20 - 5 X 25 - 5 X 30 - 6.3 X 32
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
