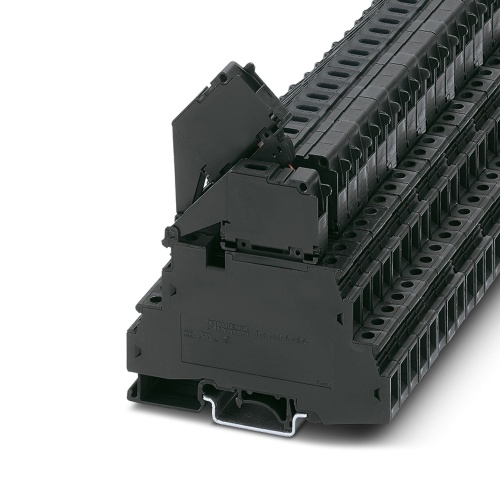

Phoenix Contact 3007204 Fuse modular terminal block UKK 5-HESI (5X20)
Normally In Stock
Code: 40842
UKK 5-HESI (5X20) Phoenix Contact 3007204 Fuse modular Terminal Block - UKK 5-HESI (5X20) - Fuse type: Glass Screw Connection 2 Level 8.2 mm with 4 Connections. Not Grounded, Fused Black. 400 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$26.32
Sale Price
$21.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3007204 The fuse module terminal block features a glass/ceramic fuse with a rating of G for 5 x 20mm connections at 400V and 32A nominal current. The rated cross section is 4mm², spanning from 0.2 to 4mm², and utilizes screw connection methods. It can be mounted using various types including NS35/7.5, NS35/15, and NS32, with a color specification of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Compact double-level fuse terminal block
Downloads
Phoenix 3007204 CAD data International.dxfPhoenix 3007204 CAD data International.pdfPhoenix 3007204 CAD data International.stpPhoenix 3007204 CAD Drawing.zipPhoenix 3007204 Manufacturers declaration English.pdfPhoenix 3007204 Manufacturers declaration International.pdfPhoenix 3007204 Safety note English.pdfPhoenix 3007204 Spec Sheet.pdfPhoenix 3007204 Tender Text English.zip
