Code: 40810

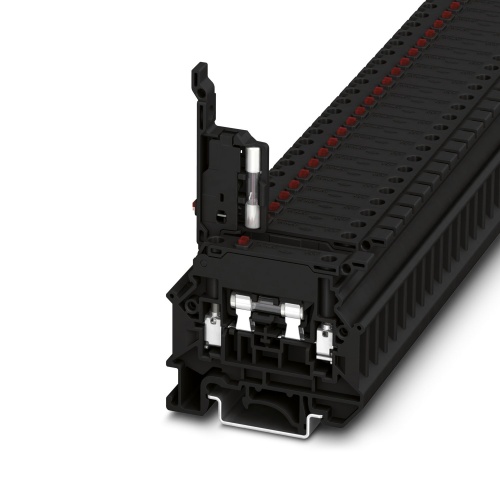

Phoenix Contact 3000541 Fuse modular terminal block UK 5-HESILED 60 N
Normally In Stock
UK 5-HESILED 60 N Phoenix Contact 3000541 Fuse modular Terminal Block - UK 5-HESILED 60 N - fuse type: Glass Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 60 Volt, 6.3 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$20.23
Sale Price
$16.86
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3000541 A fuse with a modular terminal block features glass/ceramic fuses of type G and has specific characteristics such as a nominal voltage of 60V, a nominal current rating of 6.3A, and one position for connection via screw mounting, with rated cross sections ranging from 0.2mm² to 6mm² and is mounted using the NS35/7.5 or NS35/15 or NS32 mounting type, all in black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides

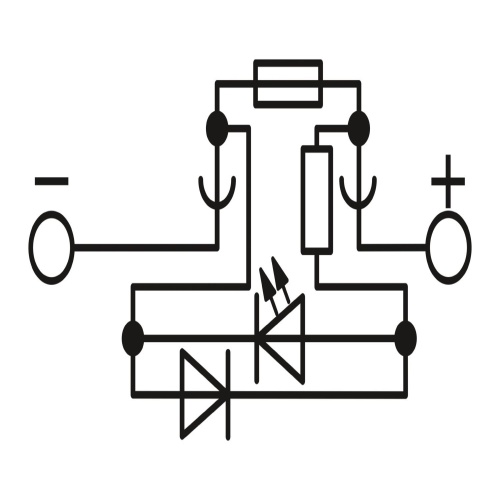

Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator

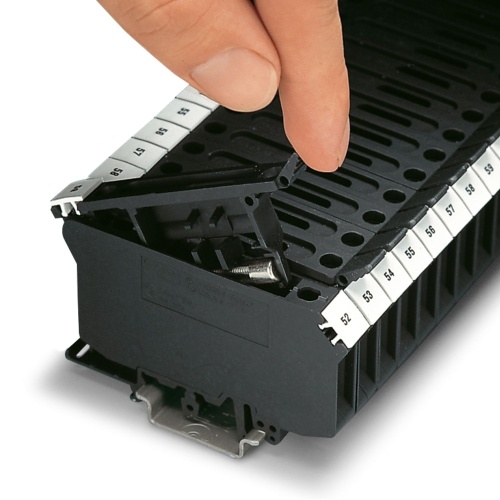

Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3000541 CAD data International.dxfPhoenix 3000541 CAD data International.pdfPhoenix 3000541 CAD data International.stpPhoenix 3000541 Manufacturers declaration English.pdfPhoenix 3000541 Manufacturers declaration International.pdfPhoenix 3000541 Safety note English.pdfPhoenix 3000541 Tender Text English.zip
