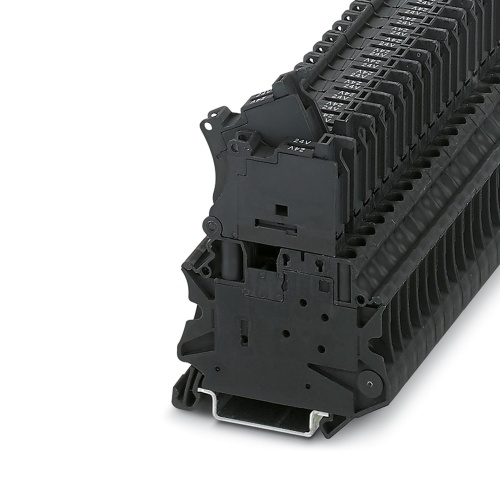

Phoenix Contact 3046540 Fuse modular terminal block UT 4-HESILED 24-P/P
Normally In Stock
Code: 40795
UT 4-HESILED 24-P/P Phoenix Contact 3046540 Fuse modular Terminal Block - UT 4-HESILED 24-P/P - Lever-type fuse Terminal Block for 5 x 20 mm Glass fuse inserts, with LED for 24 V DC
Condition: New
Usually ships within 7-14 days. Call for ship time.$13.39
Sale Price
$11.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046540 The fuse terminal block features a modular design with a test socket for inserting test plugs and is rated for a nominal voltage of 24V and a nominal current of 6.3A. It has one position and uses screw connection for mounting, with a rated cross section of 4mm2 and available sizes ranging from 0.14mm2 to 6mm2, suitable for mounting types NS35/7.5 and NS35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
