Code: 40789

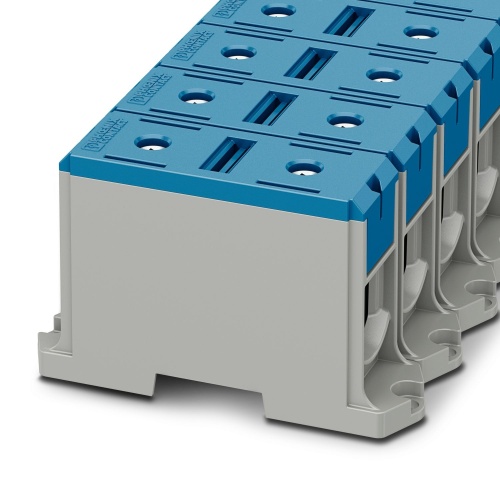

Phoenix Contact 1086506 High-current terminal block UBAL 240 BU
Normally In Stock
UBAL 240 BU Phoenix Contact 1086506 High-current Terminal Block - UBAL 240 BU Screw Connection 1 Level 37.5 mm with . Not Grounded, Not Fused Blue. 1000 Volt, 380 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$48.80
Sale Price
$40.67
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086506 A high-current terminal block features a nominal voltage of 1000 V and a maximum nominal current of 380 A, accommodating two connections in one position using a screw connection method. The rated cross section is 240 mm2, spanning from 35 mm2 to 240 mm2, with the same specifications for mounting via screws and distinguished by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
37.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
500
Terminal Block Amperage
380 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086506 CAD data International.dxfPhoenix 1086506 CAD data International.pdfPhoenix 1086506 CAD data International.stpPhoenix 1086506 Manufacturers declaration International-2.pdfPhoenix 1086506 Manufacturers declaration International.pdfPhoenix 1086506 Safety note English.pdfPhoenix 1086506 Tender Text English.zip
