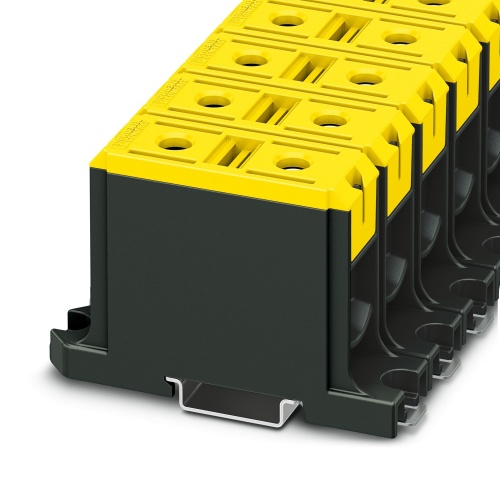

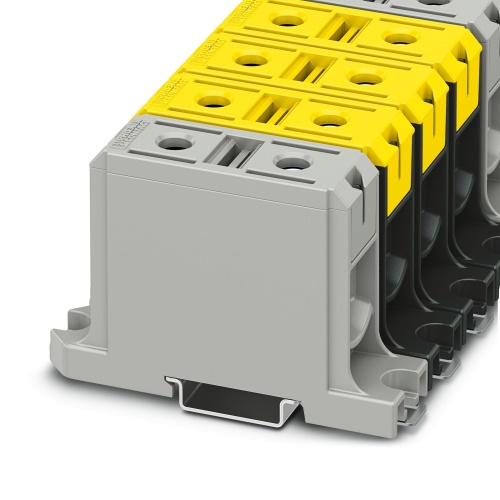

Phoenix Contact 1086480 High-current terminal block UBAL 95 FE
Normally In Stock
Code: 40783
UBAL 95 FE Phoenix Contact 1086480 High-current Terminal Block - UBAL 95 FE Screw Connection 1 Level 25.1 mm with . Not Grounded, Not Fused Yellow. 1000 Volt, 220 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$32.04
Sale Price
$26.70
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086480 A terminal block features high-current connections with a nominal voltage of 1000 V and a maximum current rating of 220 A, accommodating two connection points within one position, secured by a screw mechanism. The cross-sectional area is defined as 95 mm2 for the rated section, while also allowing up to 16 mm2 in addition to this area, all with an NS mounting type available, distinguishable from yellow coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
25.1 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
220 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086480 CAD data International.dxfPhoenix 1086480 CAD data International.pdfPhoenix 1086480 CAD data International.stpPhoenix 1086480 Manufacturers declaration International-2.pdfPhoenix 1086480 Manufacturers declaration International.pdfPhoenix 1086480 Safety note English.pdfPhoenix 1086480 Tender Text English.zip
