Code: 40575

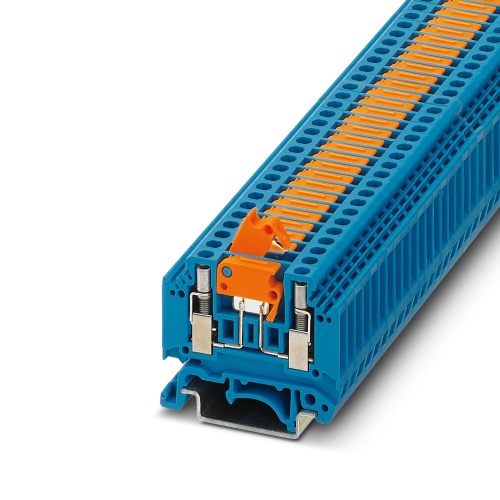

Phoenix Contact 3104123 Knife-disconnect terminal block MTK-P/P MIT SPERRE BU
Normally In Stock
MTK-P/P MIT SPERRE BU Phoenix Contact 3104123 MTK-P/P MIT SPERRE BU Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$9.53
Sale Price
$7.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3104123 The knife-disconnect terminal block features test socket screws for easy connection and disconnection, with a rated voltage of 400V and a maximum current capacity of 16A. The module is connected using screws and has varying cross-sectional areas between 0.2mm² to 4mm². It can be mounted on the following bases: NS35/7.5, NS35/15, or NS32.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3104123 CAD data International.dxfPhoenix 3104123 CAD data International.pdfPhoenix 3104123 CAD data International.stpPhoenix 3104123 Manufacturers declaration English.pdfPhoenix 3104123 Manufacturers declaration International-2.pdfPhoenix 3104123 Manufacturers declaration International.pdfPhoenix 3104123 Safety note English.pdfPhoenix 3104123 Tender Text English.zip
