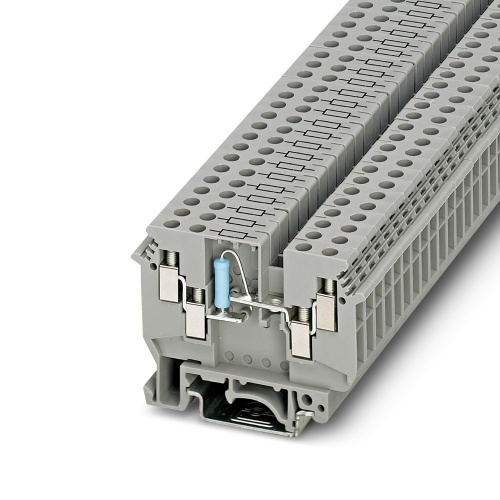

Phoenix Contact 2775250 Component terminal block UDK 4-DUR 499
Normally In Stock
Code: 40523
UDK 4-DUR 499 Phoenix Contact 2775250 Component Terminal Block - UDK 4-DUR 499 1-level Terminal Block with double connection on both sides, with fitted resistor 499 Ω, ± 0.1%, 0.5 W, TCR ± 10 ppm/K,
Condition: New
Usually ships within 7-14 days. Call for ship time.$22.51
Sale Price
$18.76
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2775250 The component terminal block has a nominal voltage of 630 V and a nominal current of 32 A, accommodating up to four connections via screw connections with varying cross-sectional ratings ranging from 0.2 mm2 to 6 mm2, mounted using the NS 35/7.5, NS 35/15, or NS 32 mounting types and comes in gray color.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The four-conductor connection enables user-friendly wiring
A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
The constant circuits common in process automation transmit the measured values as a load-independent current of 0 ... 20 mA
The lower level is assigned to the measuring line while the upper level is used for voltage pick-off via the 499 ohm resistor
